Wall mounted LED Display

Short Description:

Wall mounted LED Display, a revolutionary LED display solution for businesses, organizations and individuals who want to display information, products and services on a vivid, high-quality and energy-efficient display.

Ultra Thin Series visually supports the most demanding use models for control rooms, boardroom presentations, or media-heavy applications. It delivers the best colour reproduction and uniformity, highest brightness, greatest performance with dark content, highest resolutions and is also ready for High Dynamic Range (HDR) content.

The wall mounted LED Screens offer mission-critical design for 24×7 reliability and are designed to maximize technological advancements for mounting, alignment, space constraints, reliability, fast service, power efficiency, scalability and long life.


Product Detail

Parameters

Application

Video

Product Tags

tup1

I-thin Series

Ultra-thin

Ultra-thin (thickness only 28mm) • Ultra-light (cabinet weight only 19-23kg/sqm) • All front maintenance, simple structure and easy installation • High brightness and contrast, good color saturation

418(2)
720(1)

Full front maintenance design for easy installation

Due to the ultra-lightweight of the panels, they can be installed directly on wooden or concrete walls, and all parts are serviceable from the front.

Diversified installation methods

Direct wall-mounted installation, no need steel structure.

57(1)
l1

Corrugated heat sink

Corrugated heat sink can expand the heat dissipation area

Right angle splicing

Support right angle seamless splicing, perfect visual effect.

l2
339(1)

High brightness and low gray perfect picture quality

Realize seamless and smooth assembly between screens, bringing you the ultimate high-definition picture enjoyment. The best helper for your event, conference or exhibition.

Mounting bracket

The biggest feature of UT series is that it can be installed without welding. It will be equipped with mounting bracket, and all installation can be exempted from welding process. It is suitable for countries with high labor costs such as Europe and the United States. Especially suitable for high-end shopping malls, airports, stations and other places.

2
645(1)

Adjustable floor stand (0°〜10°)

Advantages of Wall Amounted LED Display

5453465

Ultra-thin (thickness only 28mm)

5823952

Ultra-lightweight (cabinet weight only 19-23kg/sqm)

5650602

All front maintenance, simple structure and easy installation

3696947

High brightness and contrast, good color saturation


  • Previous:
  • Next:

  • Item Number Pl.9 P2.5 P2.6 P2.9
    Pixel Pitch 1.953mm 2.5mm 2.604mm 2.976mm
    Pixel Density (m) 262144 160000 147456 112896
    LED Arrangement SMD1212 SMD2020/1515 SMD2020/1515 SMD1515
    Module Resolution 128*128 100*100 96*96 84*84
    Panel Resolution 384/512/640*128 300/400/500*100 288/384/480*96 252/336/420*84
    Module Dimension 250*250mm
    Panel Dimension 750*250*28mm 1000*250*28mm 1250*250*28mm
    Panel Weight 19-23kg/sqm
    Scan Mode 1/32 1月25日 1/32 1月28日
    Brightness Level 600-800nits
    Max Power Consumption 480W/m
    Ave Power Consumption 150W/m
    Operating Power Source 100-240V/AC50-60HZ
    Visual View Angle 140°
    Operating Temperature -20~+50°C
    Driving IC DP3265S
    Refresh Rate 3840Hz
    Color Temperature 6500±500k
    Protecting Rating IP20
    Signal Input Source S-VIDIO.VGA, DVI, HDMI,SDI
    Item Number Pl.9 P2.6 P3.9
    Pixel Pitch 1.953mm 2.604mm 3.906mm
    Pixel Density (m) 262144 147456 65526
    LED Arrangement Flip Chip SMD1010 SMD1921 SMD1921
    Module Resolution 128*128 96*96 64*64
    Panel Resolution 384/512/640*128 288/384/480*96 256/192/320*64
    Module Dimension 250*250mm
    Panel Dimension 750*250*28mm 1000*250*28mm 1250*250*28mm
    Panel Weight 19-23kg/sqm
    Scan Mode 1/32 1/32 1月16日
    Brightness Level 2000-3000 nits
    Max Power Consumption 800W/m2
    Ave Power Consumption 267W/m2
    Operating Power Source 100-240V/AC50-60HZ
    Visual View Angle 140°
    Operating Temperature -20~+50°C
    Driving IC DP3265S
    Refresh Rate 3840Hz
    Color Temperature 6500±500k
    Protecting Rating IP20
    Signal Input Source S-VIDIO.VGA, DVI,HDMI,SDI

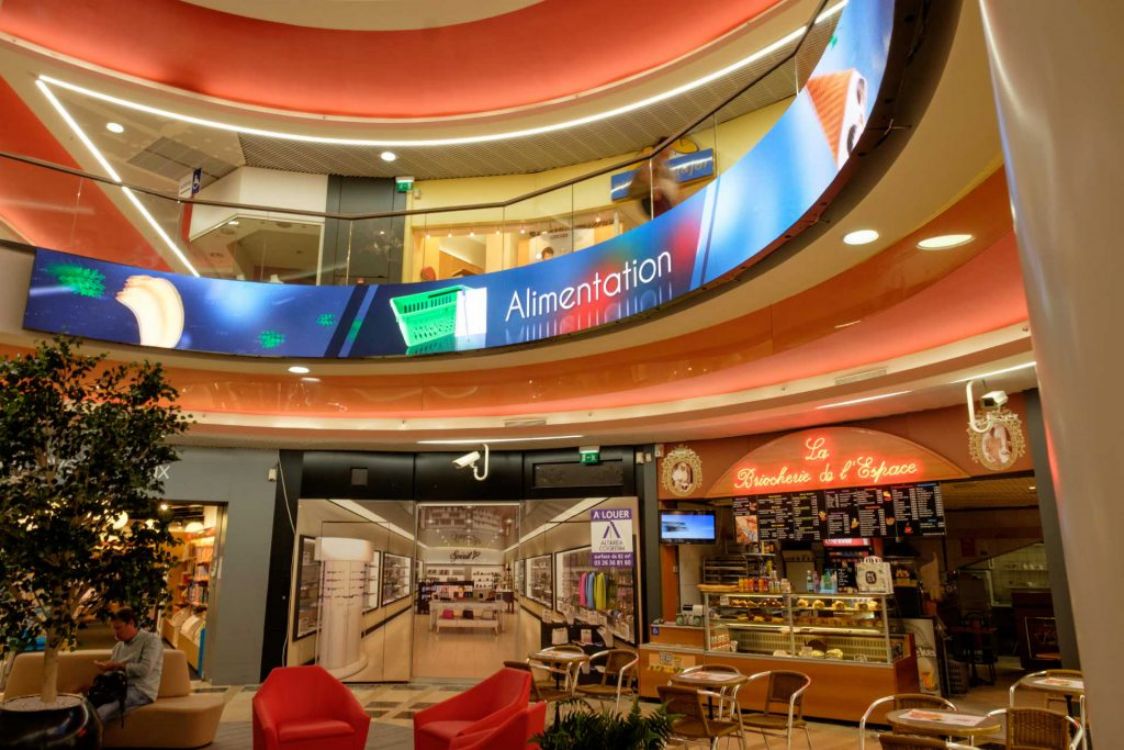

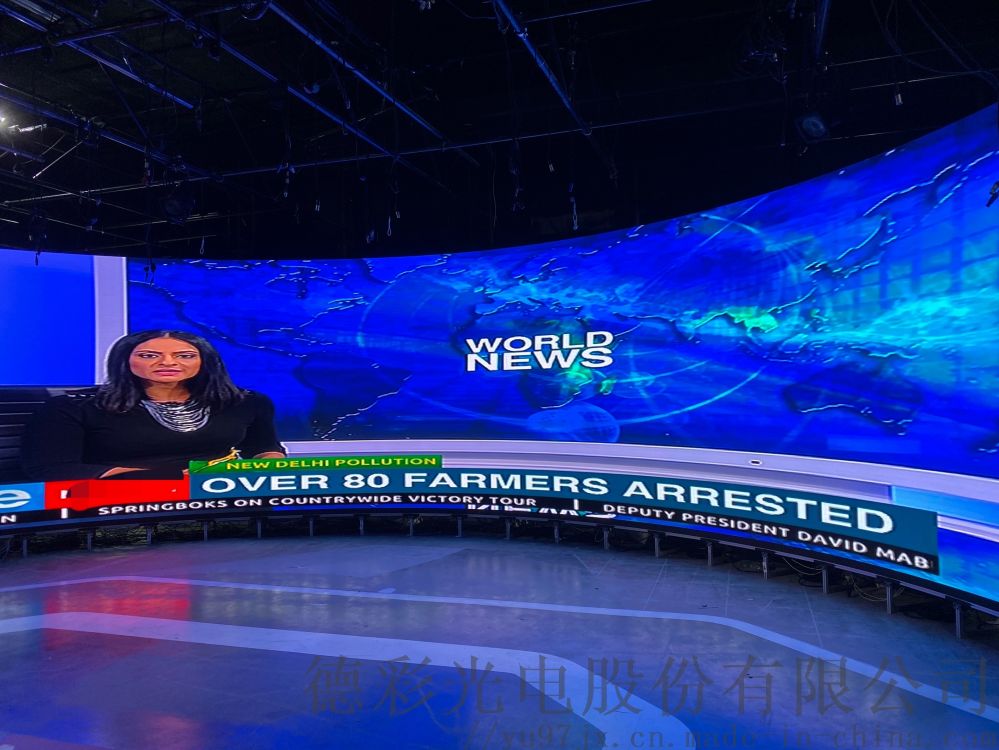

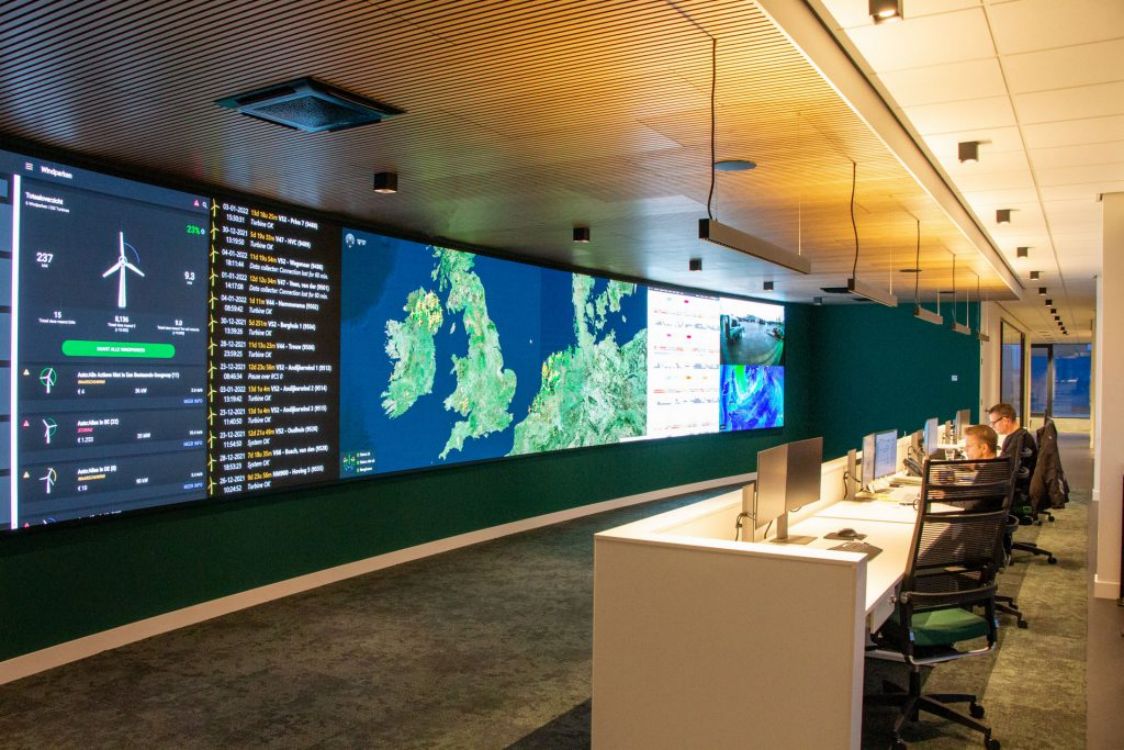

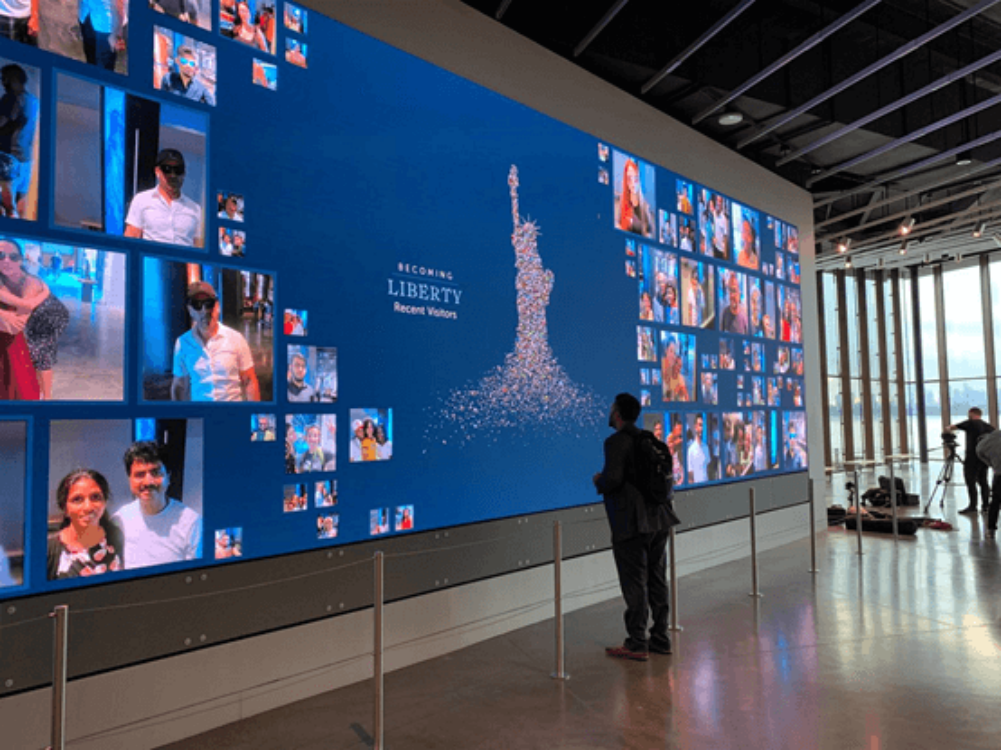

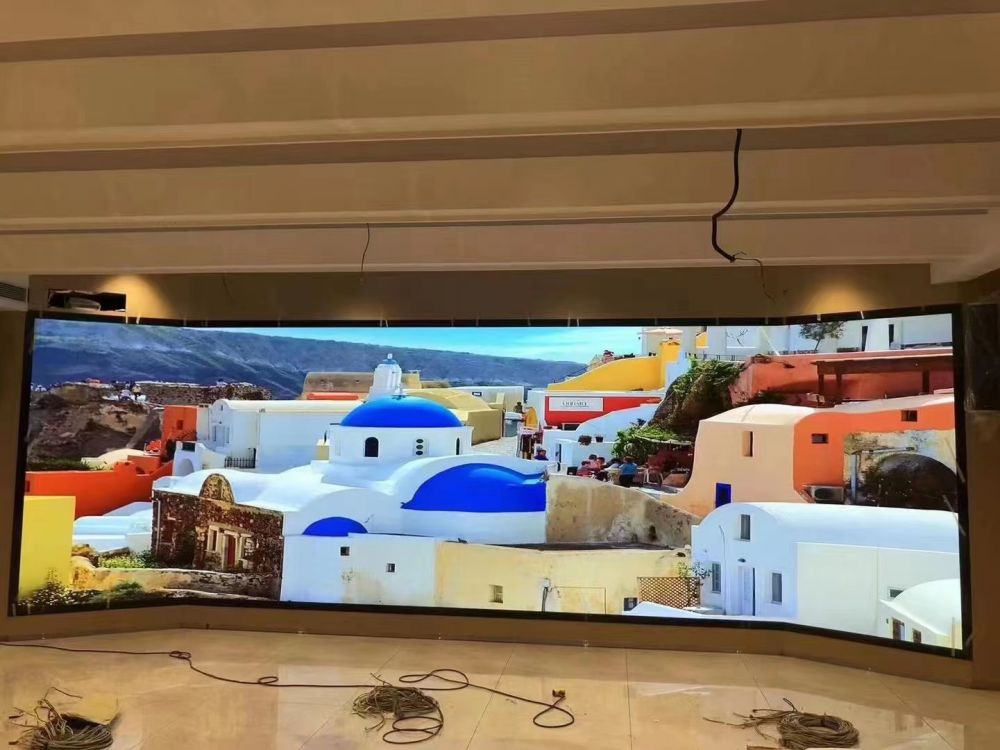

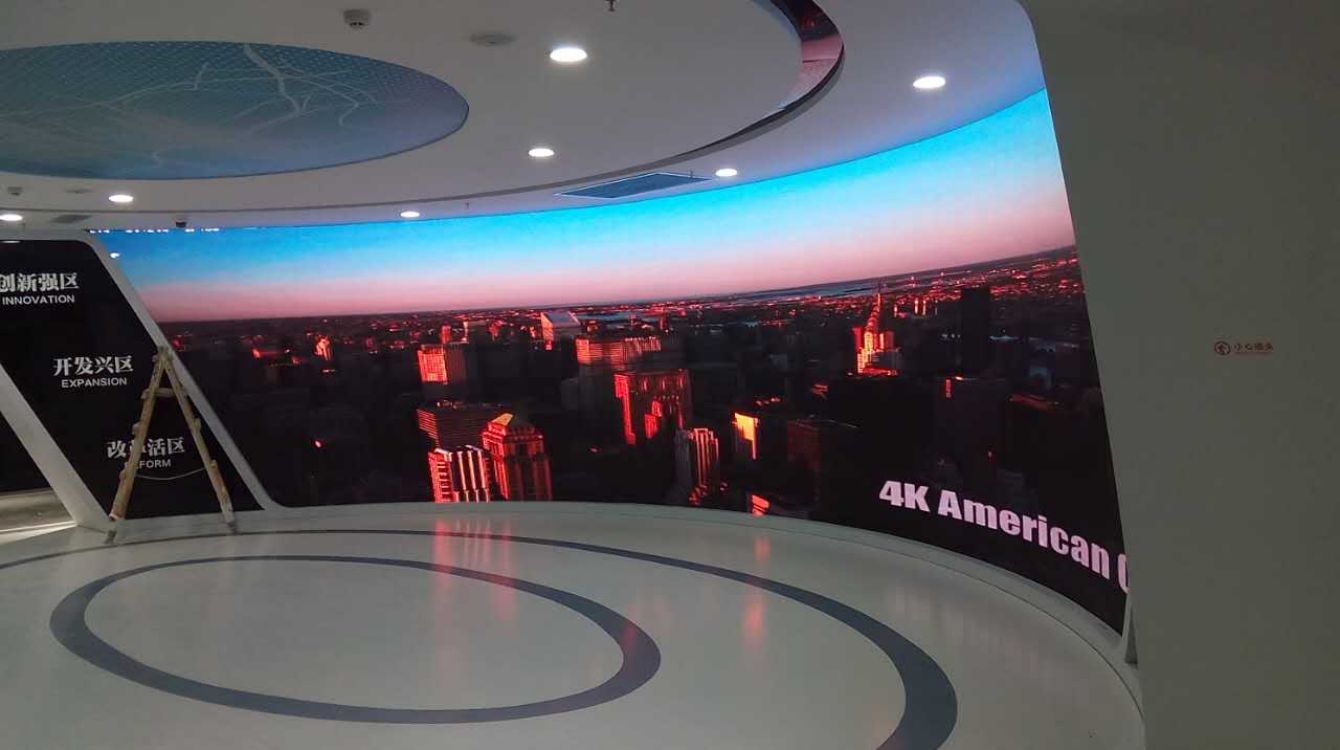

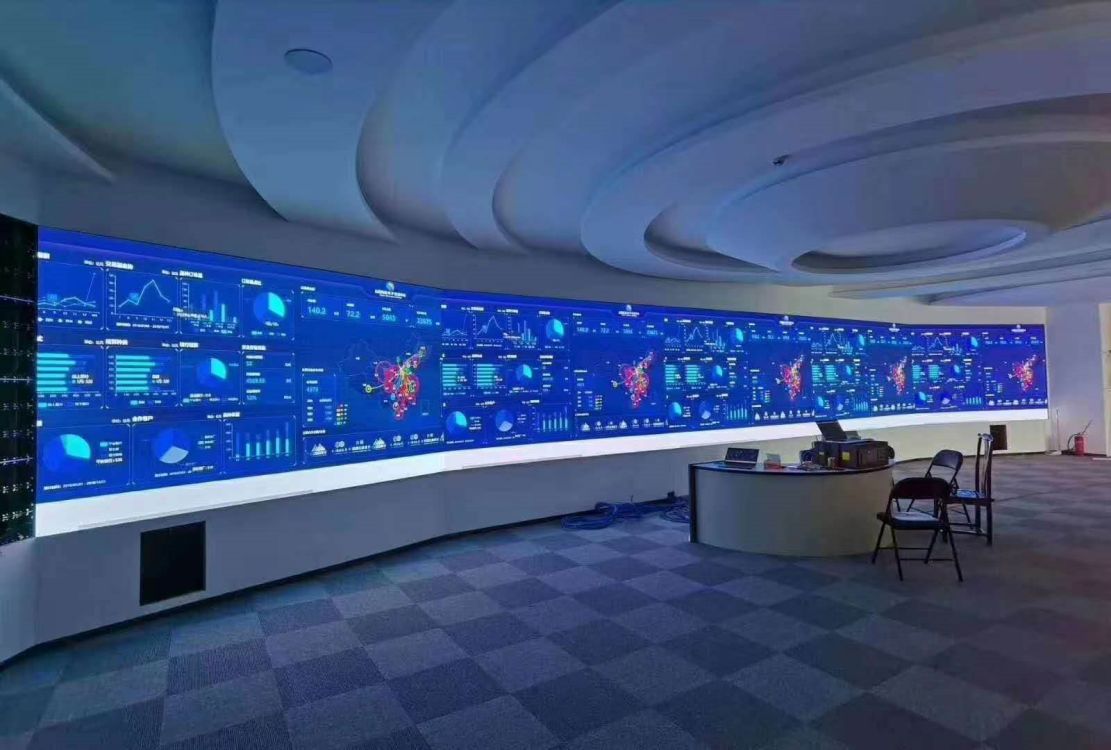

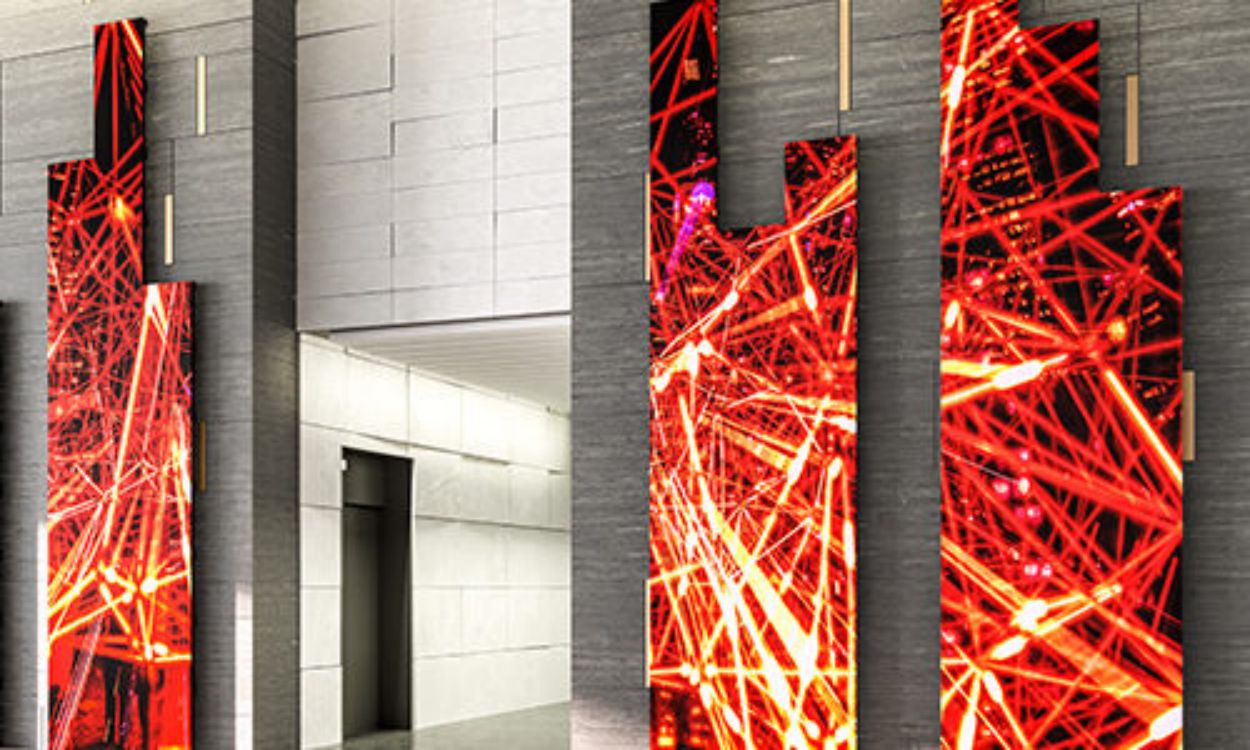

    000-fYdTuSObAzcA xx TIL1X1IF_alt2-500x300 QLI_REE_Barneveld_Highres_10-1024x683 DSF9492-1024x683 b_4267737202007220913411905 6371721558248695981432670 5d7079fdeefe3
