Indoor Curved Rental LED Product Parameters

Short Description:

Indoor Curved Rental LED Display refers to the LED display that can be provided to the event organizer for rental. The structure of rental led display should be light, thin, fast assembly and disassembly, and it has different installation methods and different shapes in order to meet the various stage or show requirement.

Indoor Curved Rental Screen is compatible with the perfect presentation and flexible installation. Concave or convex wave, right angle and cube can be  connected seamlessly to form various complex shapes in order to deliver a more attractive visual experience.

GOB surface protection technology, as an option, can provide better  protection for LEDs during daily use and transportation. Due to its  applications in humidity-proof and anti-collision, GOB greatly reduces  maintenance frequency and improves the service life cycle.

Product Detail


Product Tags


ItemIndoor P1.9Indoor  P2.6Indoor 3.91mm
Pixel Pitch1.9mm2.6mm3.91mm
Module size250mmx250mm
lamp sizeSMD1515SMD1515SMD2020
Module resolution132*132dots96*96dots64*64dots
Module weight0.35kgs
Cabinet size500x500mm
Cabinet  resolution263*263dots192*192dots128*128dots
Module quanity4pcs
Pixel density276676dots/sqm147456dots/sqm65536dots/sqm
MaterialDie-Casting Aluminum
Cabinet Weight8kgs
Refresh rate1920 and 3840Hz
Input VoltageAC220V/50Hz or AC110V/60Hz
Power Consumption(Max. / Ave.)660/220 W/m2
IP rating(Front/Rear)IP43
MaintenanceBoth Front and Rear Service
Operating Temperature-40°C-+60°C
Operating Humidity10-90% RH
Operating Life100,000 Hours

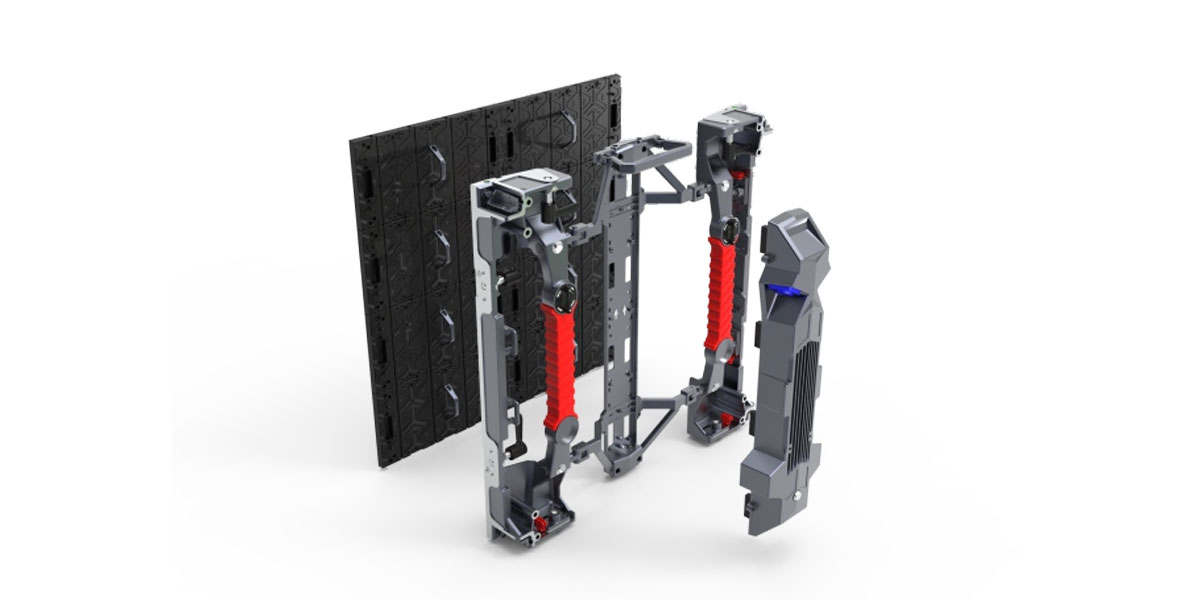

Convenient and quick set-up

Lock with angle scale marks, minimum±5°.  Fast and convenient curve adjustment makes  on-site servicing easy and cost-effective.

xv (1)

xv (1)

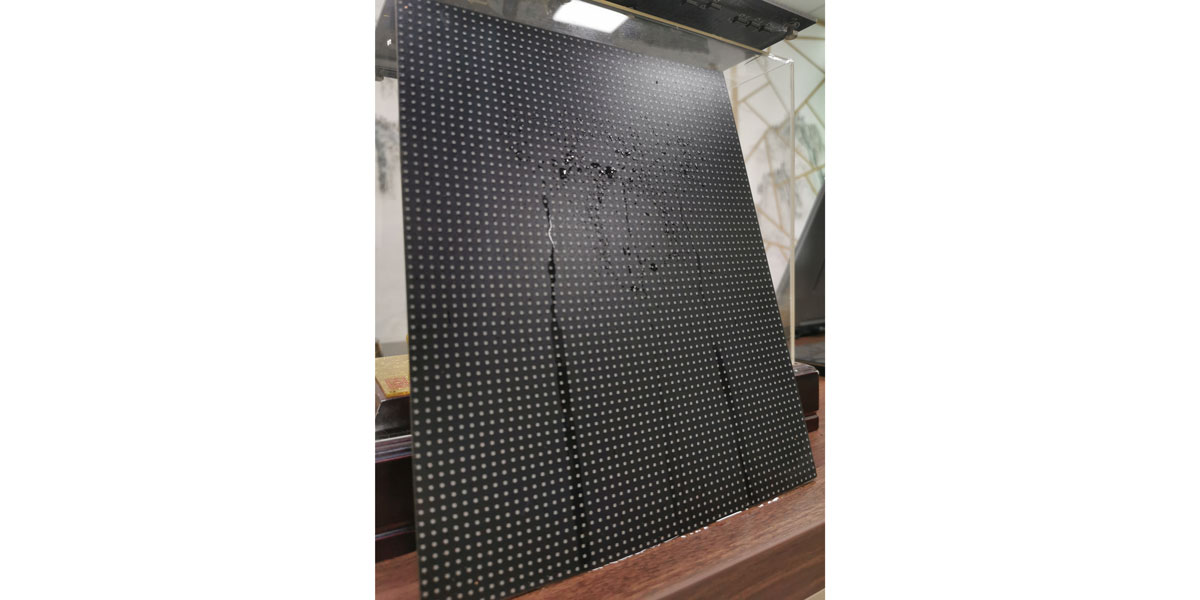

Flex Modules with GOB Coating

Revolutionary innovation covers flex modules and GOB tech.

It is compatible with flexible shapes and provides exceptional protection.

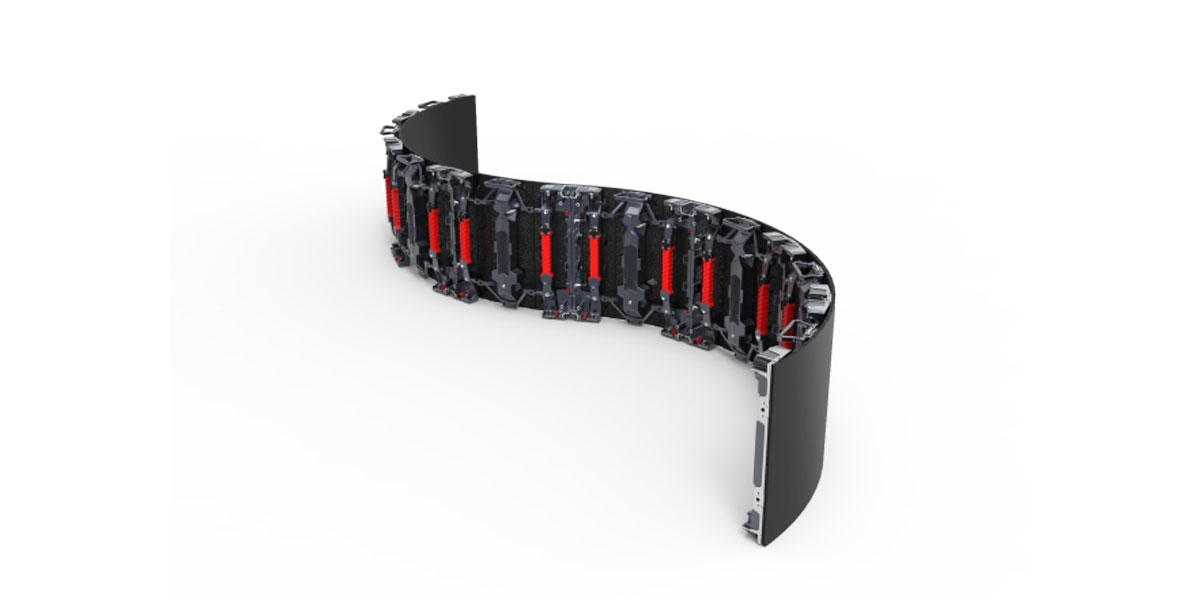

Concave or Convex Wave

The bending is divided into 8 small steps to guarantee a smooth and even look.

xv (1)

xv (1)

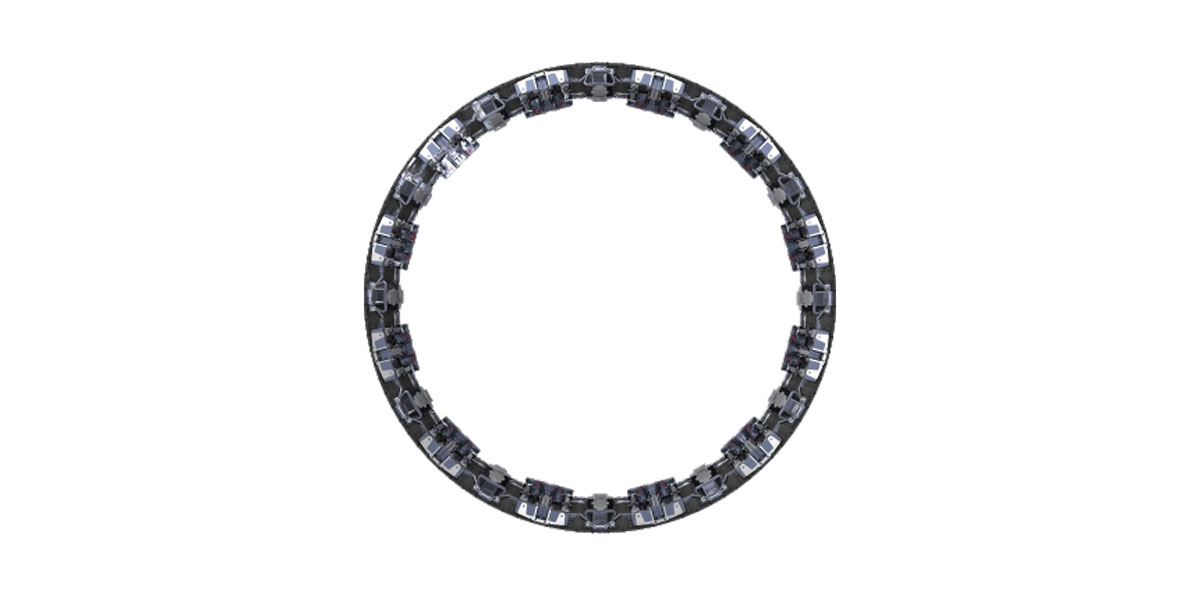

The curving adjustment of every panel ranges from-30°to +30°, 12 panels can form a circle with a minimum diameter of 1.91m.

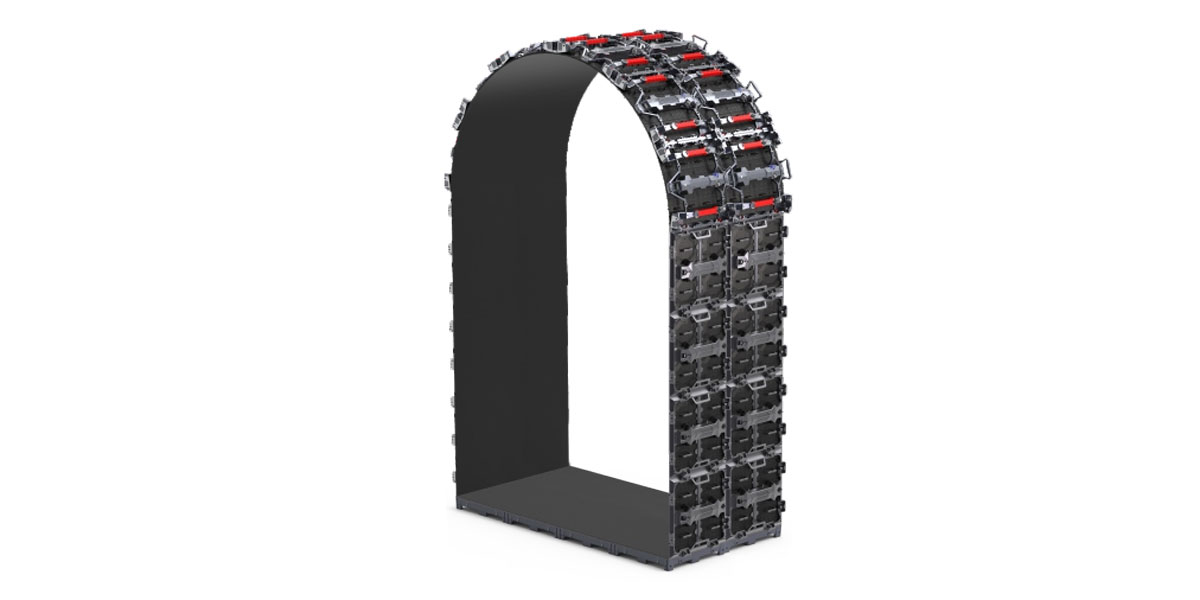

Apollo-S can be connected with our other cabinets in structure and circuit. All can be mixed and matched in the same batch to form a complete configuration. By combining  the three LED panels in one wall, numerous creations can be realized.

xv (1)

Advantages of Our Indoor Rental LED Display

Metal heat dissipation, ultra-quiet fan less design.

Fan-less design and Front-end Operation.

High precision, solid and reliable frame design.

High precision, solid and reliable frame design.

Wide viewing angle, clear and visible images, attracting more audiences.

Wide viewing angle, clear and visible images, attracting more audiences.

Quick installation

Quick installation and disassembly, saving working time and labor cost.

High refresh rate

High refresh rate and grayscale, providing excellent and vivid images.


Flexible adaptation to various applications and creative settings for specific activities.

High Contrast Ratio

High Contrast Ratio. Mask fixation by screws, better evenness and uniformity. More than 3000:1 contrast ratio, clearer and more natural images displaying.
