The Indoor and Outdoor Flexible LED Display Panel

Short Description:

As a new type of indoor led display, the Flexible LED display has been widely used in many exhibitions and retail stores. Compared with the traditional soft led display, it has many advantages as following :

Adopt special design circuit layout PCB multi-layer process design, the optional bending angle ＞135°, suitable for cylinder, wave, ribbon screen and other artistic shape. The soft bottom shell eliminates the electronic, hollow-carved design, large magnetic force and good flatness. Flatness can be adjustable.

Adsorption installation, no warping, easy to maintain, higher security, high gray and high refresh rate design, the gray level reach to 10-16bit, refresh rate can reach to 3840hz, make LED screen image no delay and shadow, adopt distributed scanning and modular design, higher technical reliability and stability.

Envision Flexible LED Screen is perfect for rental and staging events, with easy assembly and disassembly, and can be easily moved – so you can use it anywhere! Envision Flexible LED display consists of a base unit and several panels that are connected together to form the LED panel.

Envision Flexible LED Product is not limited by the space.The flexible LED display can be bent with a certain curve, it’s widely applied in stage background and irregular places. The bending range of flexible led display is between R100~R600 which depends on your needs. When you want to put it in the suitcase and take it to the outdoor location,or maybe use it as a stage screen,it’s quite convenient. Ultra thin module makes sure no weight limit on the model size.

Send email to us Send email WhatsApp

Product Detail

Application

Product Tags

Parameter

Item	Indoor P1.25	Indoor P1.875	Indoor P2	Indoor P2.5	Indoor P3	Indoor P4
Pixel Pitch	1.25mm	1.875mm	2mm	2.5mm	3mm	4mm
Module size	240x120x8.6 (L x H x T)
lamp size	SMD1010	SMD1515	SMD1515	SMD1515	SMD2121	SMD2121
Module resolution	192*96dots	128*64dots	120*60dots	96*48dots	80*40dots	60*30dots
Module weight	0.215kgs	0.21kgs	0.205kgs	0.175kgs	0.175kgs	0.17kgs
Pixel density	640000dots/sqm	284444dots/sqm	250000dots/sqm	160000dots/sqm	111111dots/sqm	62500dots/sqm
Scan mode	1/64 scan	1/32scan	1/30scan	1/24scan	1/20scan	1/16scan
Module Bottom Shell Material	Silicone soft bottom shell
Brightness	700-1000cd/㎡
Refresh rate	≥3840Hz
Grey Scale	14-16bit
Input Voltage	AC220V/50Hz or AC110V/60Hz
Viewing Angle	H:140°, V:140°
Power Consumption(Max. / Ave.)	45/15 W/Module
IP rating(Front/Rear)	IP30
Maintenance	Front Service
Color Temperature	6500-9000 adjustable
Operating Temperature	-40°C-+60°C
Operating Humidity	10-90% RH
Operating Life	100,000 Hours

Suitable for all kinds modules ,Upgrade replacement is easy

During the assembly process, the magnet on the back of the module can be adjusted to the adjustment gap at the uneven position. For flatness, please take the module out and adjust it after adjusting it. Please do not pull violently.

Magnet suitable adjustment to ensure flatness

The module is soft and flexible, could be designed into any different shapes as you can imaging.

Long-term aging test, 10,000 bending and folding tests, 1500-days terminal market application.

It is waterproof, transparent, quick installation and easy to maintain.

Advantages of Our Flexible LED Display

Ultra-Thin And Ultra-Light.

Small pixel pitch available from P1.875mm to P4mm.

High quality with a low maintenance cost, low failure rate.

High refresh rate from 3840Hz to 7680Hz. and stable running are all ensured.

Easy to install and maintenance. Time-saving and easy operation, allow to assemble LED display screens directly from the front.

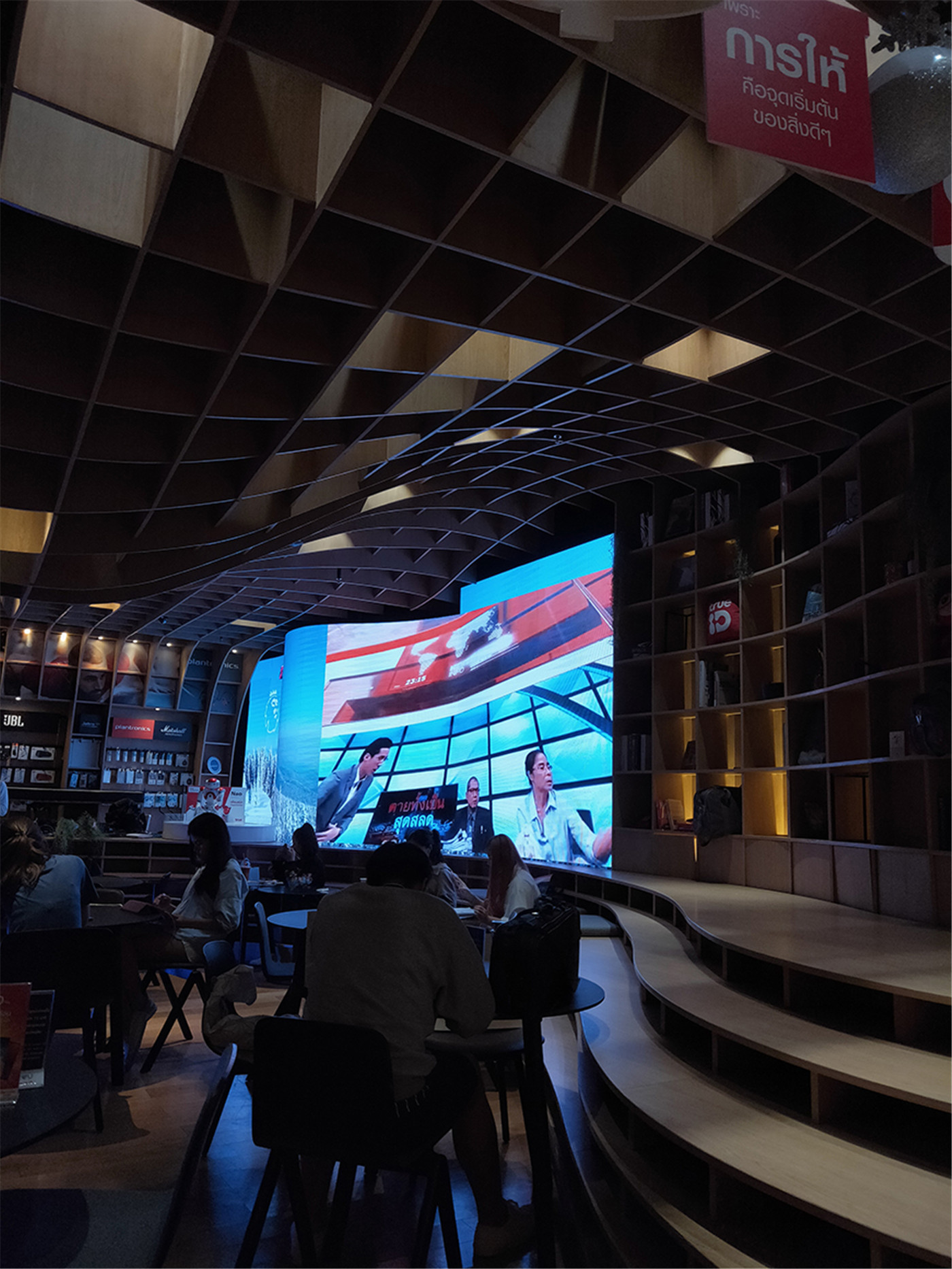

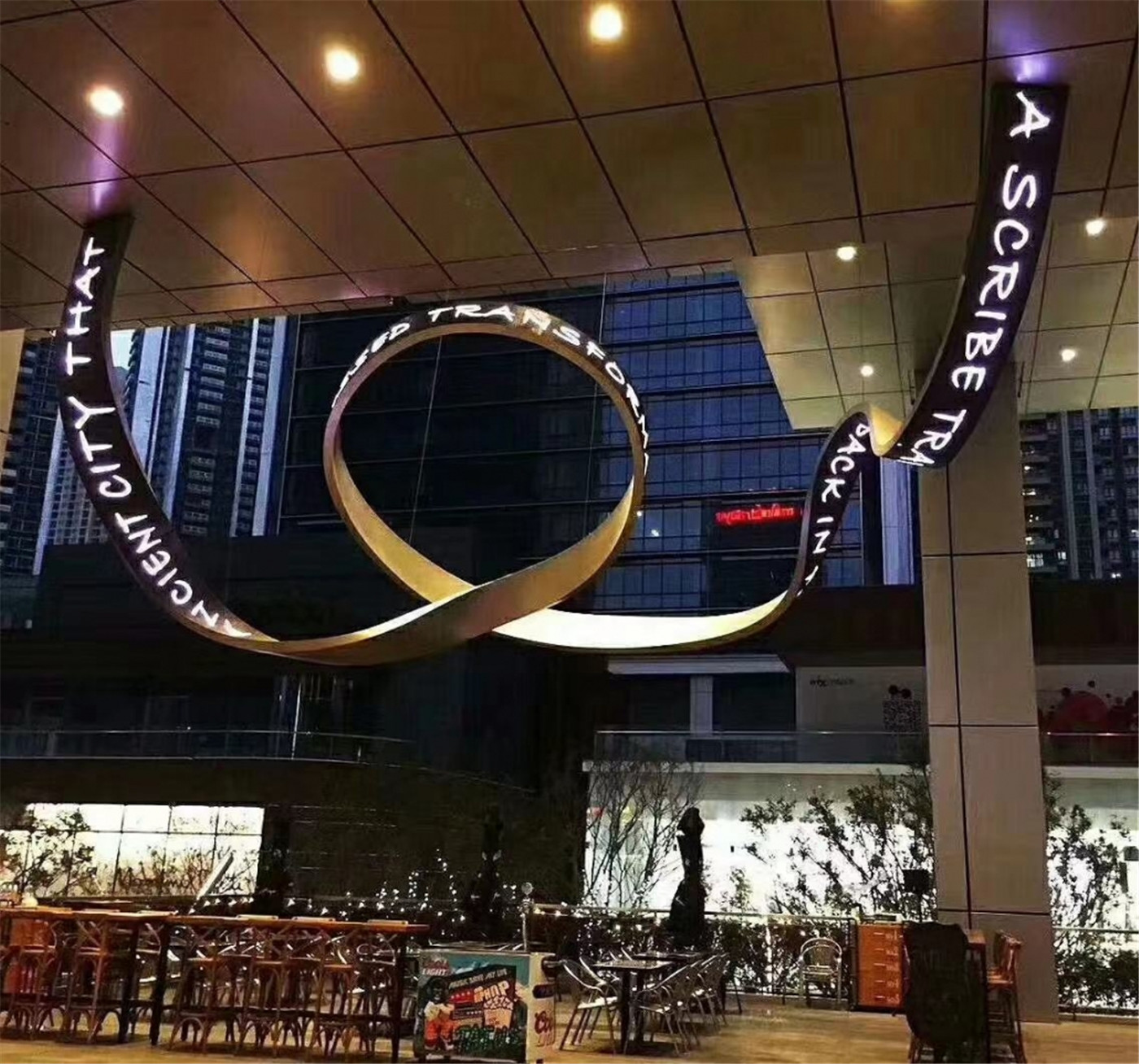

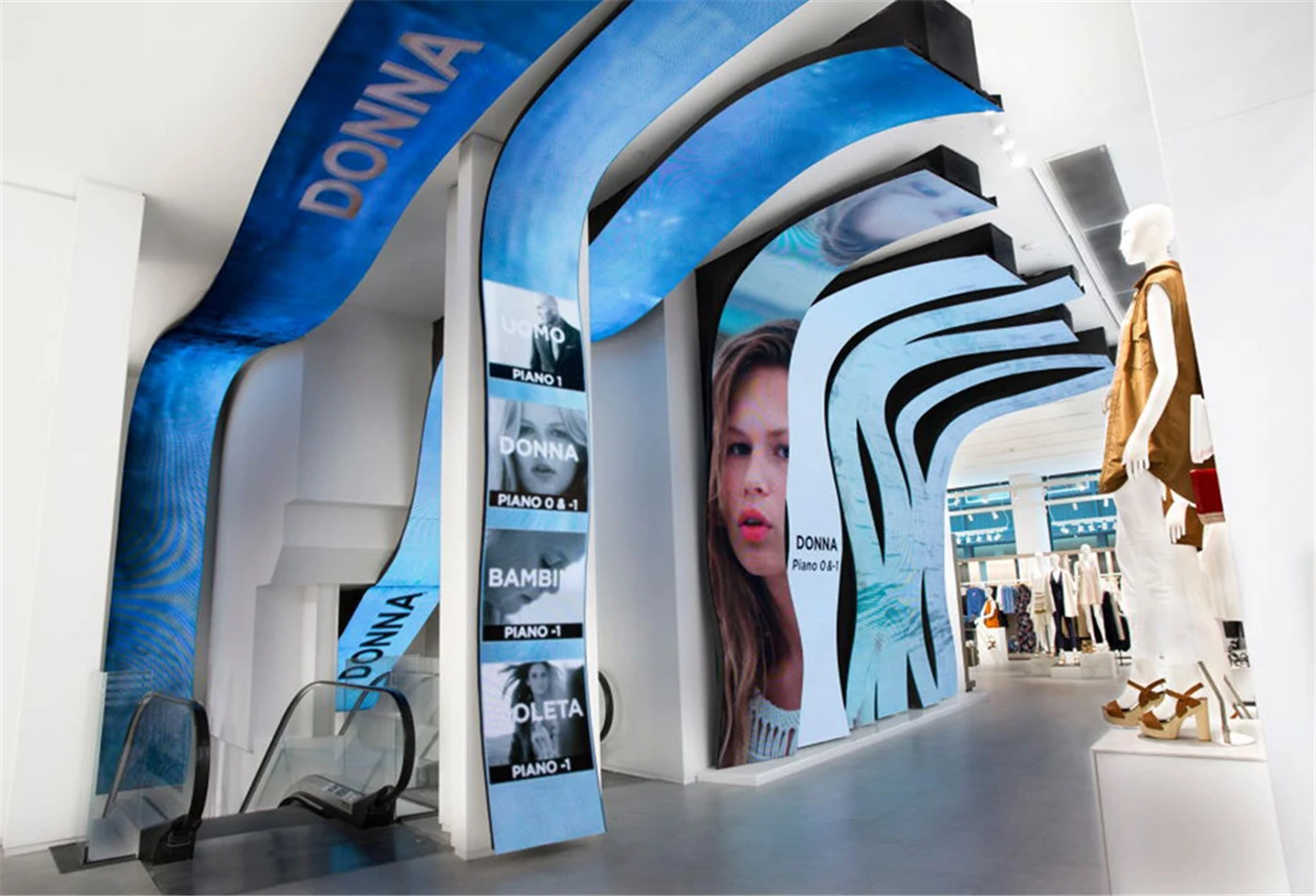

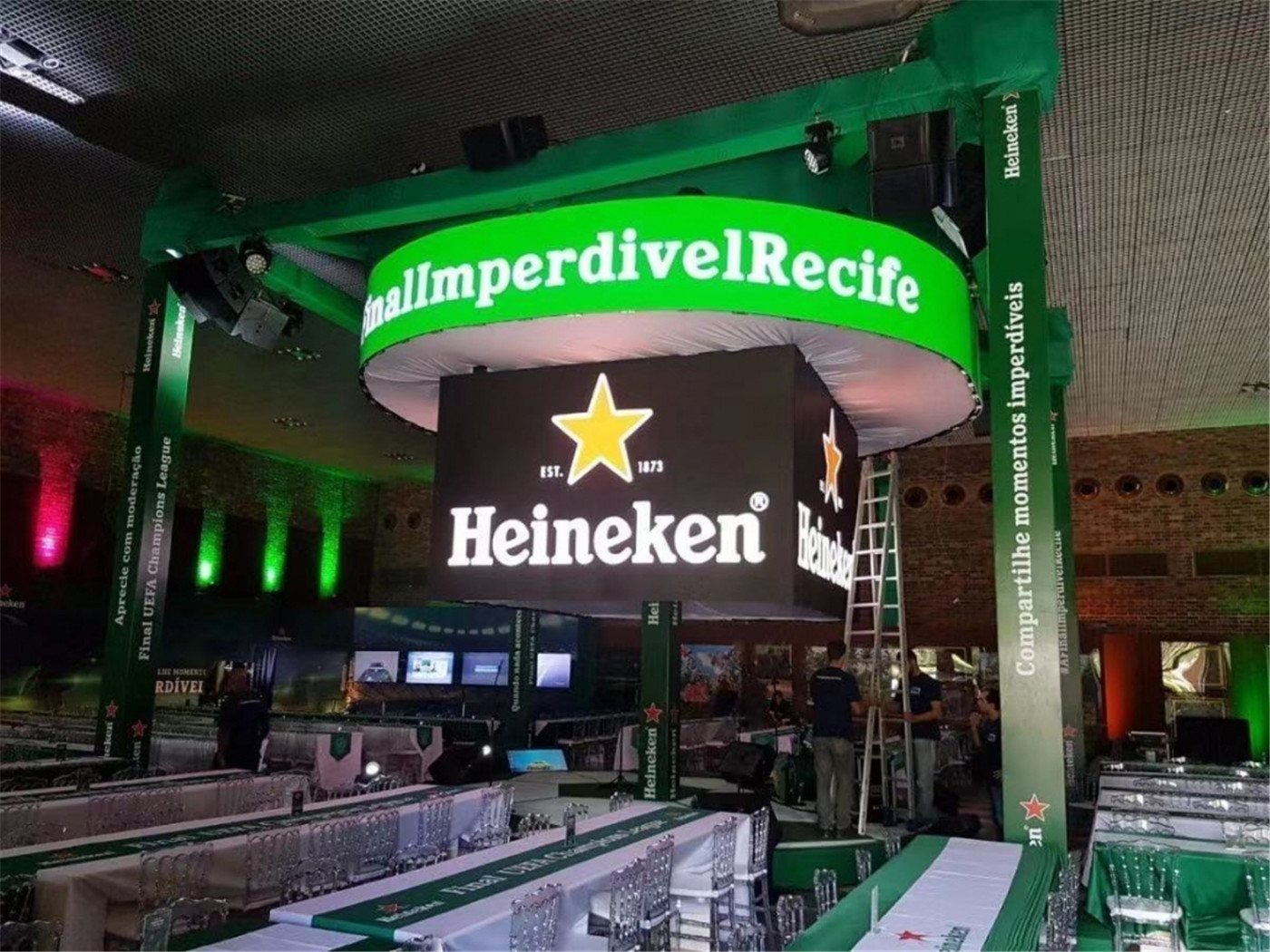

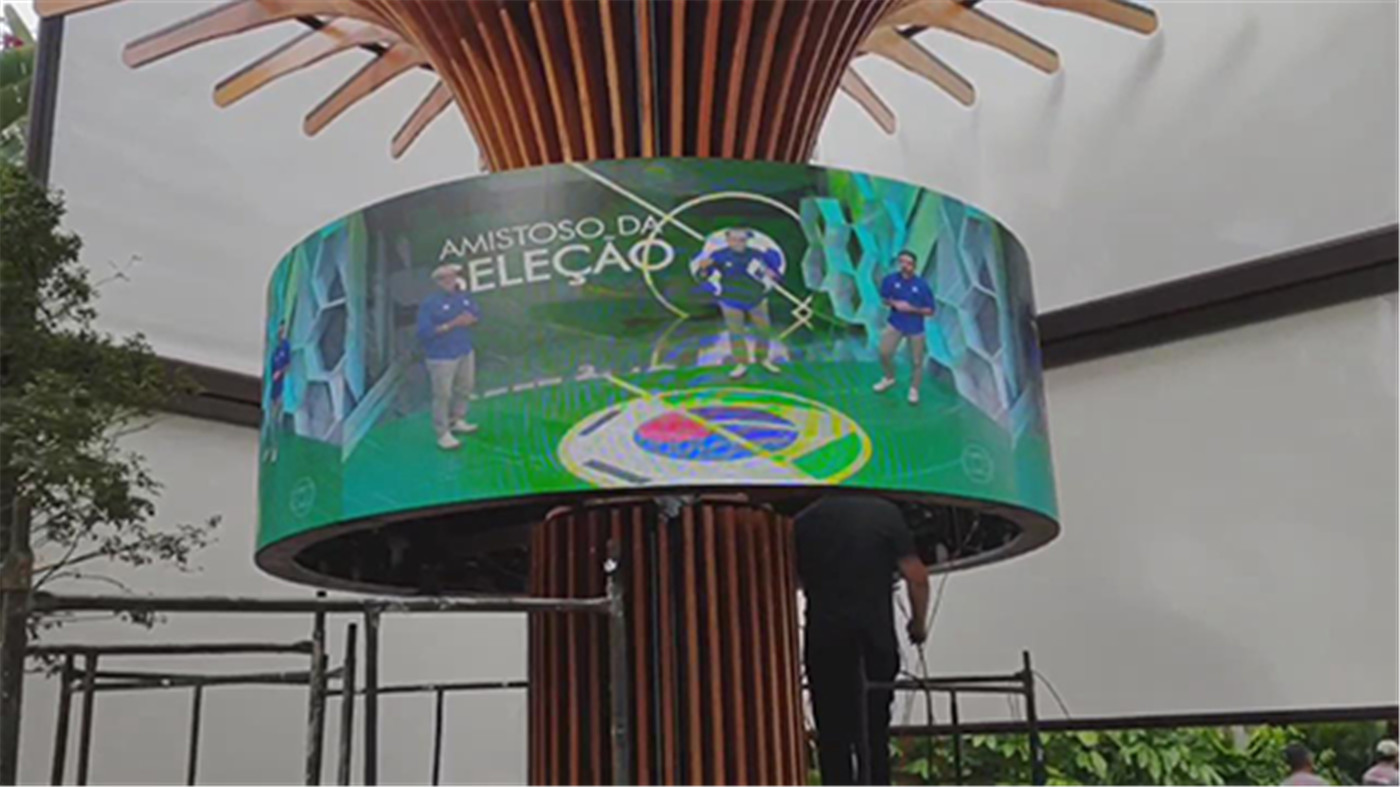

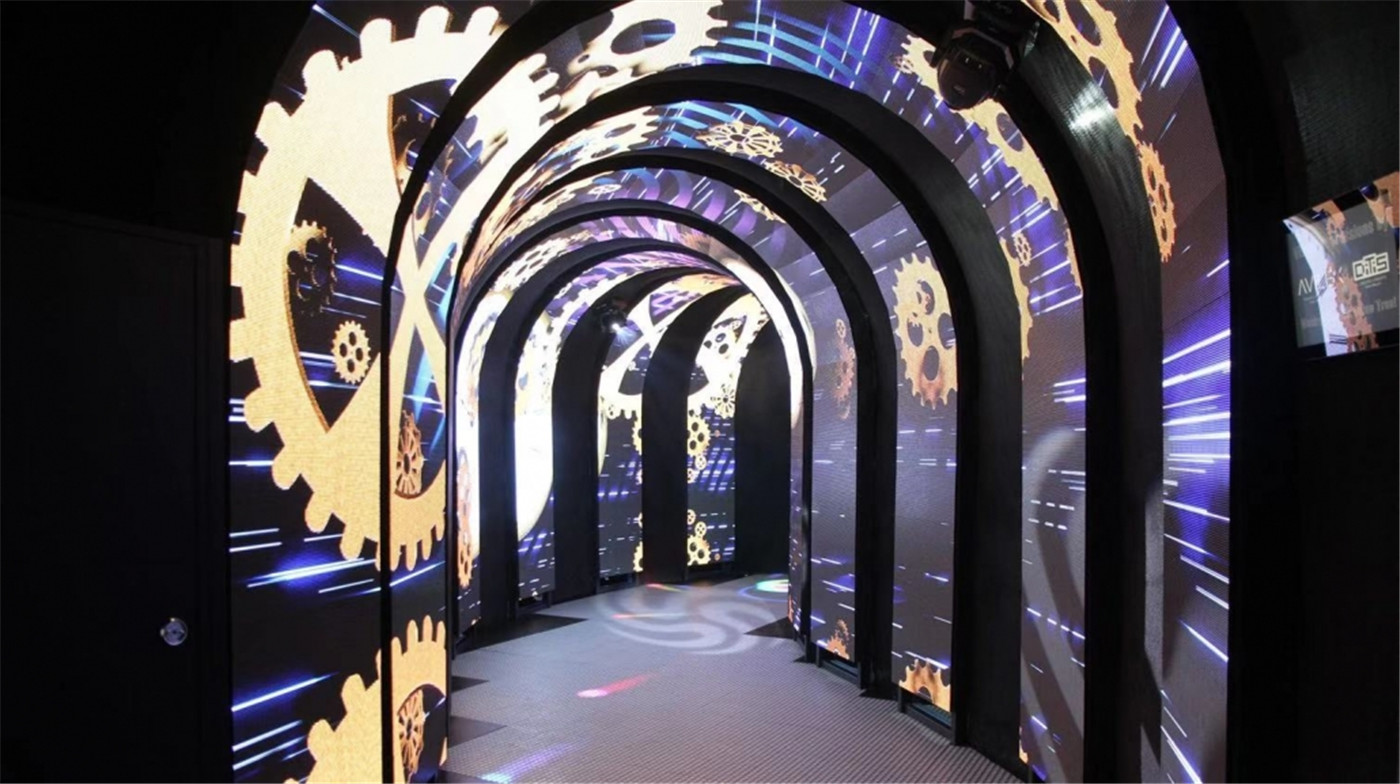

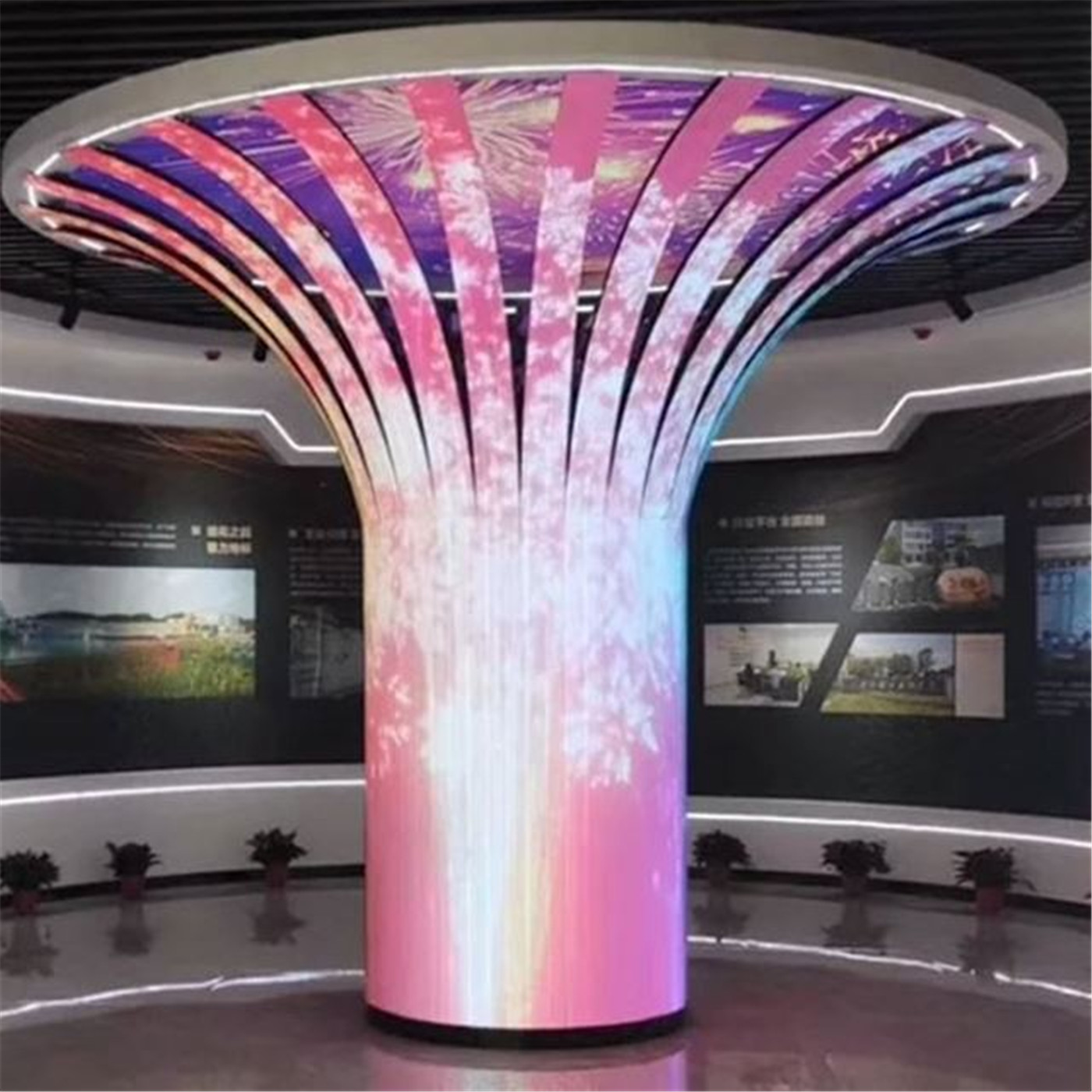

Widely use for the different application especially for arc installation. Very suitable for stage background, exhibition hall, indoor conference room, and other places that need special-shapes LED display.
