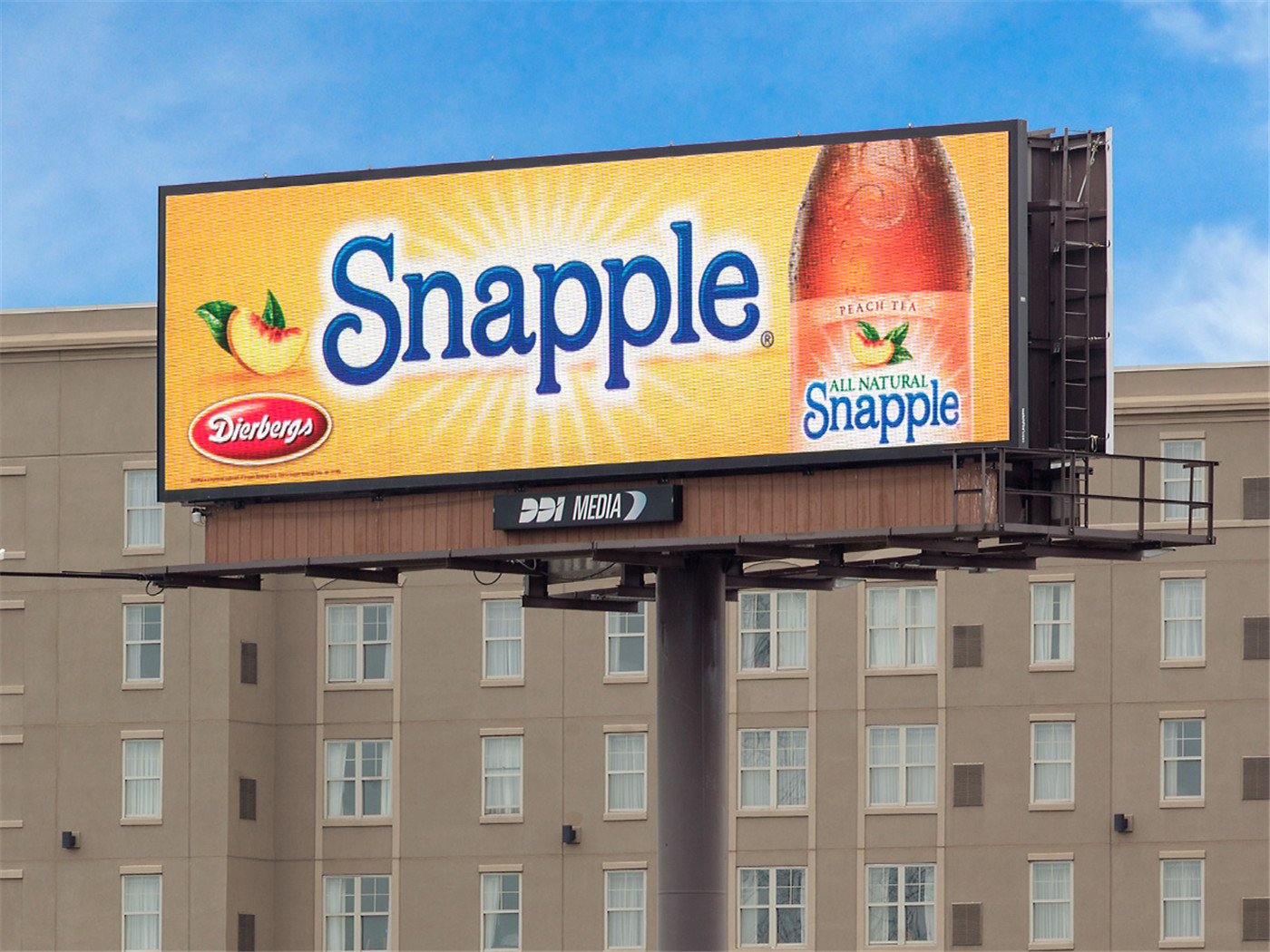

Outdoor Fixed LED Display for permanent installation
The Best Common Cathode Aluminum Display
Security & Reliability
Protective Performance

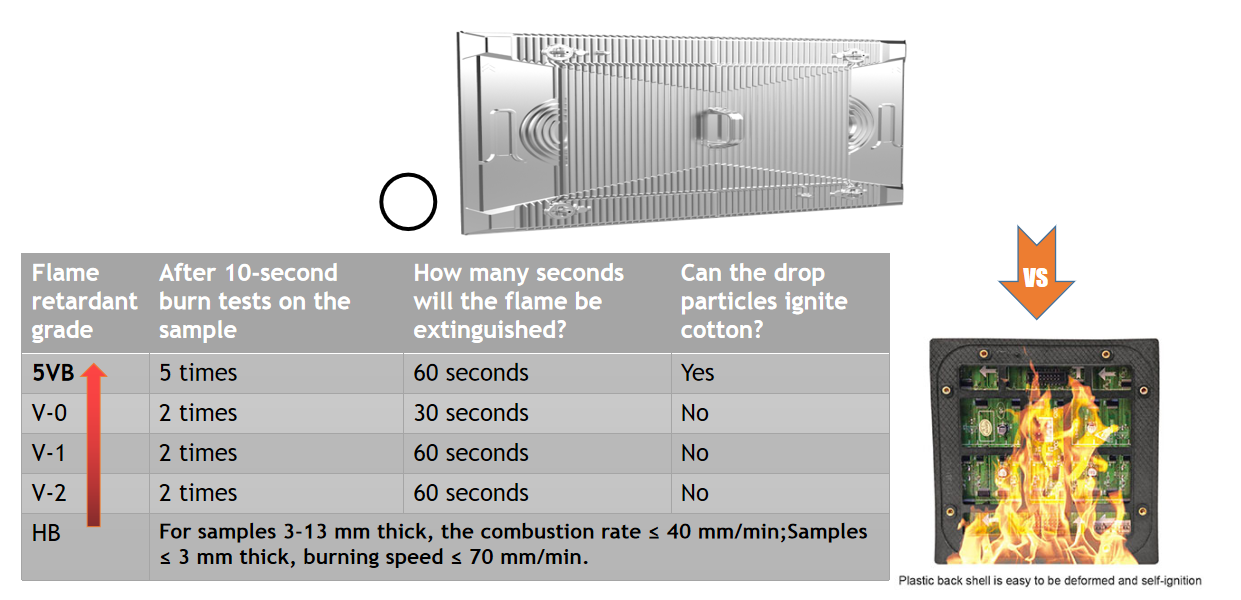

Strong Flame Resistance： Aluminum material, high temperature durability, fast heat-dissipation. The whole product can Reach 5VB fireproofing level.
Protective Performance

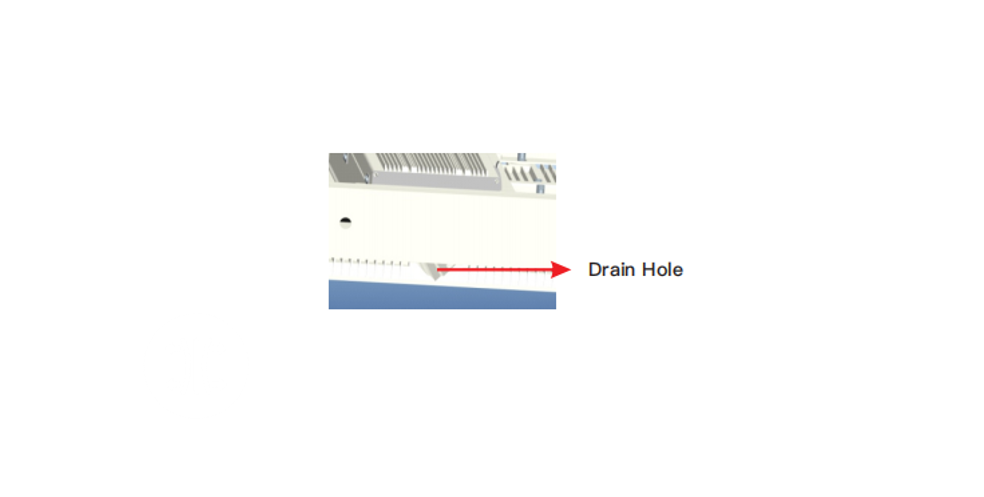

Protecting Rating (front and rear): IP66 Full sealed die-casting aluminum module chassis. Water proof connectors(between modules) Drain hole is designed at the bottom of the panel to prevent ponding. IP66 : the high standard of Waterproofing Can be immersed in the specified water pressure for a long time.
Recycling, Environment and Economy
Die-casting aluminum chasis, recycle rate 90% for the whole product. Stable and Reliable •Long lifetime. •30% Redundance while use 7000nits. Using 10000nits,3000nits can sustain 7000nits using for 5 years. •Good heat dissipation performance.
Elegant Design
Cable-less deisgn Power and data cables are hidden at the bottom of the panel Hard Connection BTB connector replace data and power cables, high stability. Multiple size Available: 960*1280/960*960/960*640/1440*1280/ 1440*960mm Customized design Support custimzed 90°screen
Longer Warranty
3 years warranty for LED module (10000nits version).
Light Weight
Weight: 28KG/㎡ for Aluminum frame Weight: 35KG/㎡ for mental frame Thickness: 75mm
Low Maintenance Cost
Why “Accuracy”?
● The die-cast aluminum module achieves seamless splicing and high flatness.
● Metal material up to 90%. Don't contains Any Plastic.

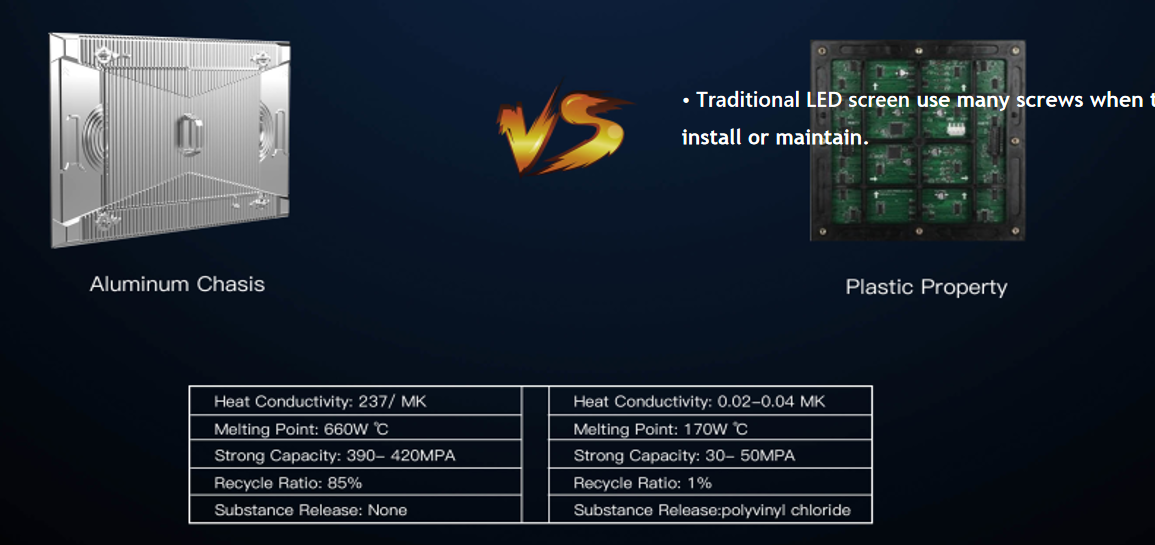

Module Contrast
Traditional LED screen use many screws when to install or maintain. Aluminum chasis adopt edge lock without screwing design. • Traditional LED screen unconcealed components. Aluminum chasis adopt full sealed design, to protect its internal components.
| Plastic Ratio | Aluminum Ratio | |
| Recycling | 1% | 85% |
High ROI

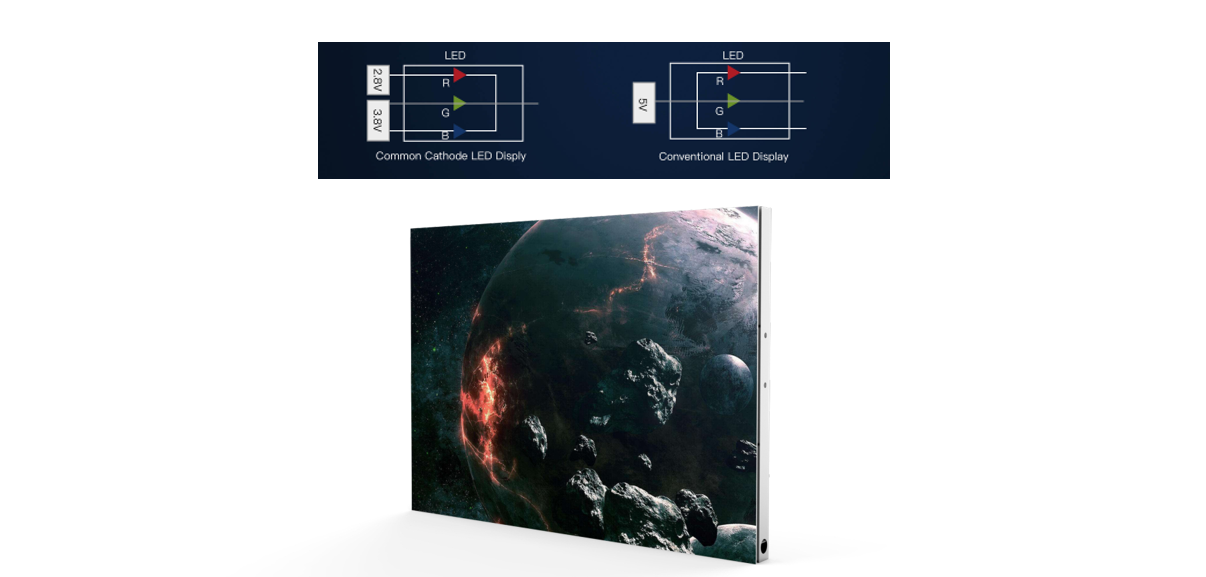

CCES:Common Cathode Energy Saving
High Brightness：SMD 10000nits Low power consumption. Noise-free Aluminum PSU
Why “10000nits”?
●Compared with the traditional SMD technology, 5000~6500 nits brightness is not easy to be seen in the strong sunlight.
●LED attenuation: brightness 5%-9% reduction every year. after 5 years Platinum still has around 7000nits.
●Calibration: After 2~3 years usage, after calibration, there is still strong brightness.
Ventilation around the screen
| Save Power Consumption | Platinum P10mm Above 7000nits | General P10mm 6000nits |
| Average 150w/sqm | Average 300w/sqm | |
| 1 DAY *100SQM | 360(KW.h) | |
| 1 YEAR*100SQM | 100,000(KW.h) | |
| 3 YRS*100SQM | 300,000(KW.h) | |
| 5 YRS*100SQM | 500,000(KW.h) | |

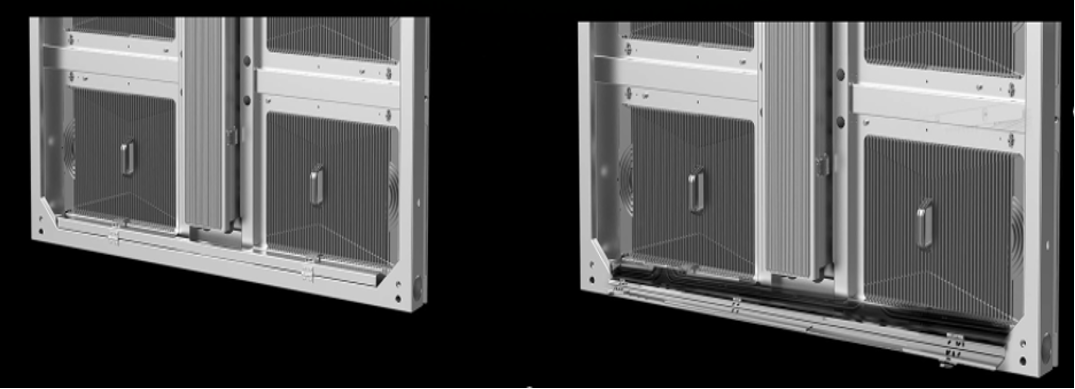

✸Ventilation around the screen Heat dissipation gap between the module and the cabinet, better heat dissipation effect
✸Fast cooling system 0.43sqm for each module 0.24sqm for each power supply box
Advantages of The Outdoor Fixed LED Display
Pixel detection and remote monitoring.
High Brightness up to 10000cd/m2.
In case of failure, it can be easily maintained.

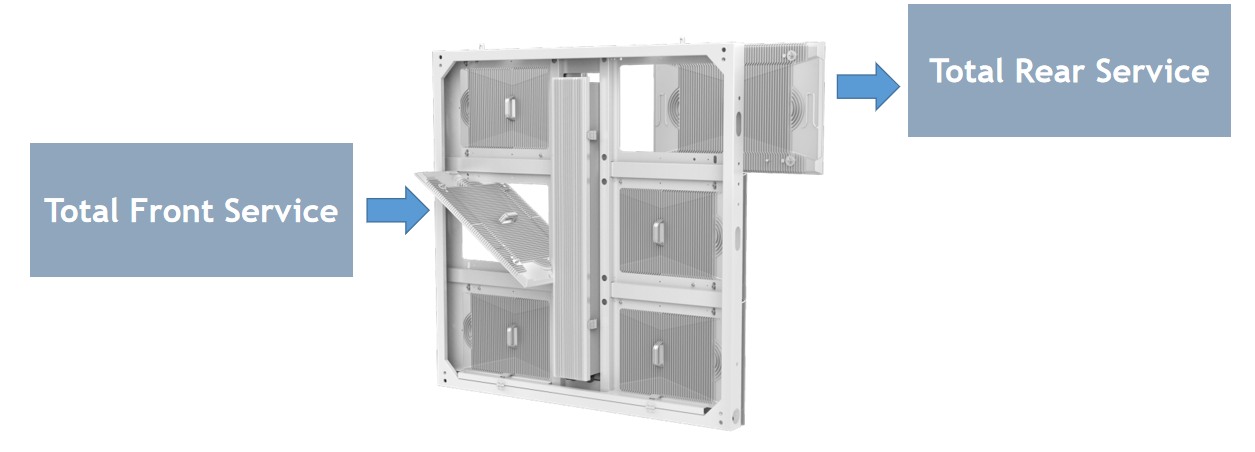

Entirely front & rear dual service, efficient and fast.
High precision, solid and aluminum frame design.
Quick installation and disassembly, saving working time and labor cost.
High reliable and long lifespan. Strong and robust quality to withstand rigid climate and 7/24 hours working.
| Item | Outdoor P5 | Outdoor P6 | Outdoor P8 | Outdoor P10 |
| Pixel Pitch | 5mm | 6.67mm | 8mm | 10mm |
| lamp size | SMD2525 | SMD2727 | SMD3535 | SMD3535 |
| Module size | 480mmx320mm | |||
| Module resolution | 96*64dots | 72*48dots | 60*40dots | 48x32dots |
| Module weight | 3kgs | 3kgs | 3kgs | 3kgs |
| Cabinet size | 960x960x72mm | |||
| Cabinet resolution | 192*192dots | 144*144dots | 120*120dots | 96x96dots |
| Module quanity | ||||
| Pixel density | 40000dots/sqm | 22500dots/sqm | 15625dots/sqm | 10000dots/sqm |
| Material | Aluminum | |||
| Cabinet Weight | 25kgs | |||
| Brightness | 8000-10000cd/㎡ | |||
| Refresh rate | 1920-3840Hz | |||
| Input Voltage | AC220V/50Hz or AC110V/60Hz | |||
| Power Consumption(Max. / Ave.) | 500/150 W/m2 | |||
| IP rating(Front/Rear) | IP65 | |||
| Maintenance | Front and rear Service | |||
| Operating Temperature | -40°C-+60°C | |||
| Operating Humidity | 10-90% RH | |||
| Operating Life | 100,000 Hours | |||
