The Outdoor Transparent LED Display
Parameters
Item | Outdoor P7.81 | Outdoor P8.33 | Outdoor P15 | Outdoor P20 | Outdoor P31.25 |
Pixel Pitch | 7.81-12.5mm | 8.33-12.5mm | 15.625 -15.625 | 20-20 | 31.25-31.25 |
lamp size | SMD2727 | SMD2727 | DIP346 | DIP346 | DIP346 |
Module size | L=250mm W=250mm THK=5mm | ||||
Module resolution | 32x20dots | 30*20dots | 16*16dots | 12x12dots | 8x8dots |
Module weight | 350g | 300g | |||
Cabinet size | 500x1000x60mm | ||||
Cabinet resolution | 64*80dots | 60x80dots | 32x64dots | 25x50dots | 16x32dots |
Pixel density | 10240dots/sqm | 9600dots/sqm | 4096dots/sqm | 2500dots/sqm | 1024dots/sqm |
Material | Aluminum | ||||
Cabinet Weight | 8.5kgs 8kgs | ||||
Brightness | 6000-10000cd/㎡ 3000-6000cd/m2 | ||||
Refresh rate | 1920-3840Hz | ||||
Input Voltage | AC220V/50Hz or AC110V/60Hz | ||||
Power Consumption(Max. / Ave.) | 450W/150W | ||||
IP rating(Front/Rear) | IP65-IP68 IP65 | ||||
Maintenance | Front and rear Service | ||||
Operating Temperature | -40°C-+60°C | ||||
Operating Humidity | 10-90% RH | ||||
Operating Life | 100,000 Hours |
● High transparency, high light transmittance.
● Simple structure and light weight
● Fast installation and easy maintenance
● Green energy saving, good heat dissipation
Envision outdoor transparent LED screen has a low wind resistance and no steel structure is needed. The transparent LED screen allows front-end maintenance, which is convenient for maintaining and installing. Additionally, as no air conditioner or fan is needed to cool down, Envision LED curtain screen saves energy and costs by more than 40% more than other traditional transparent LED screens.

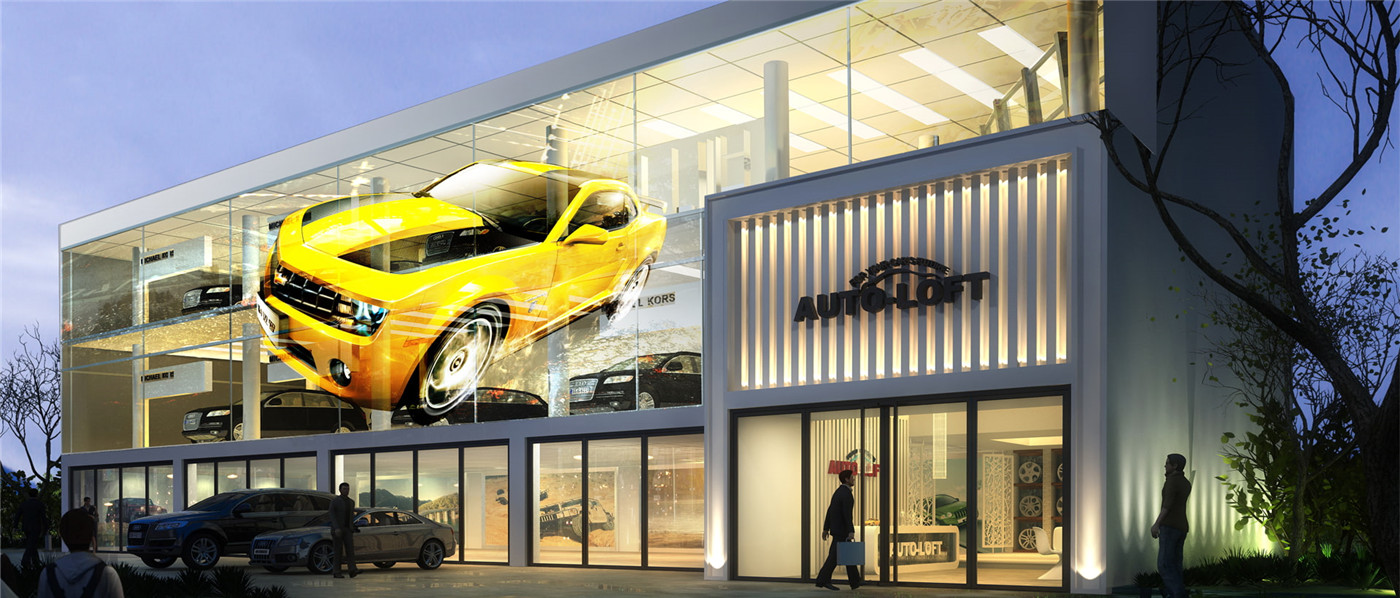

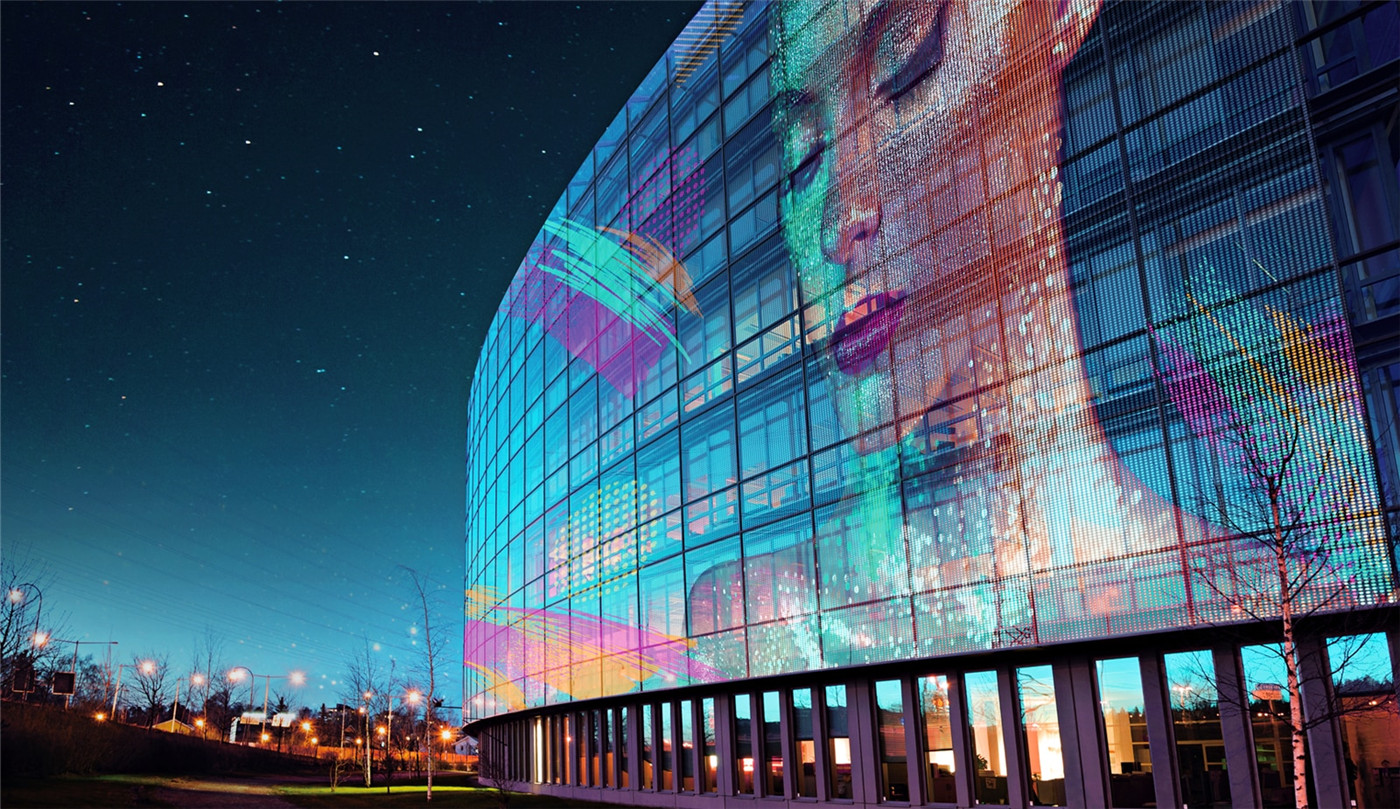

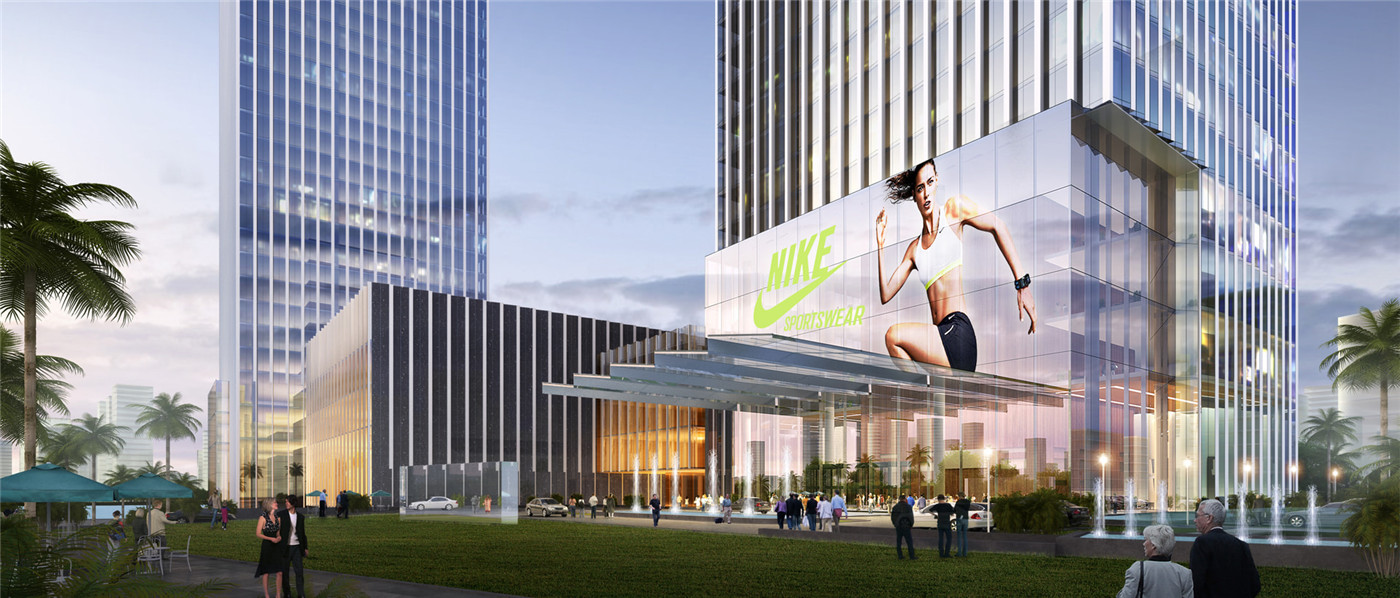

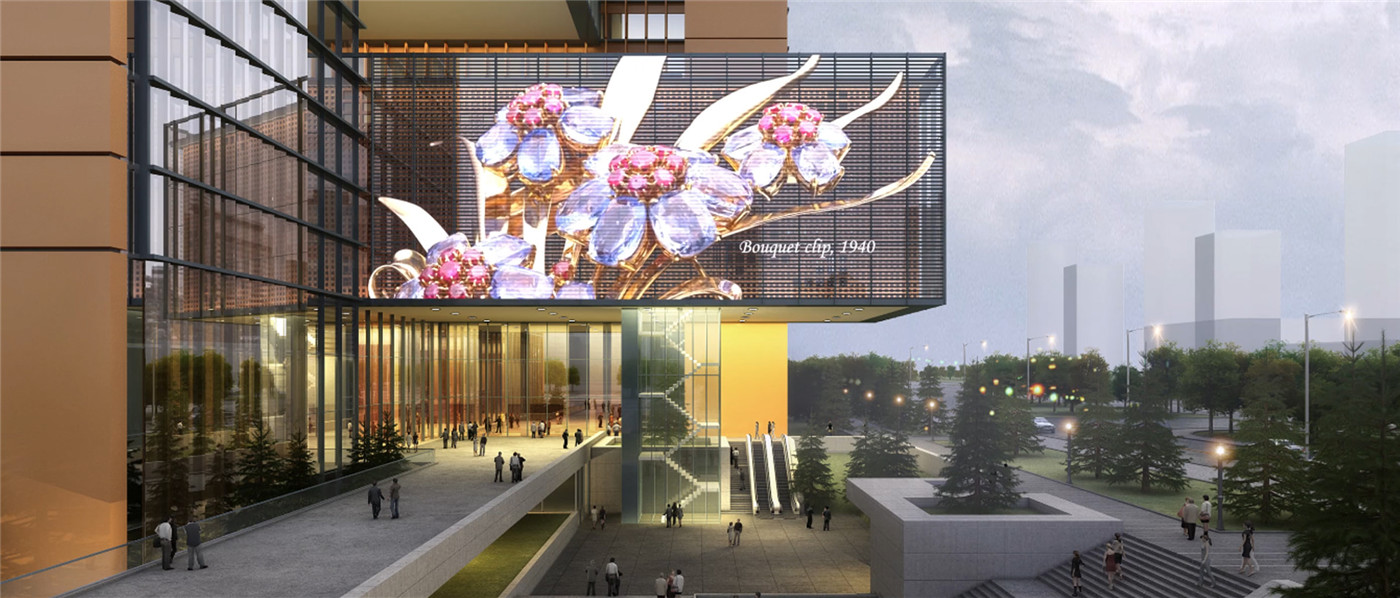

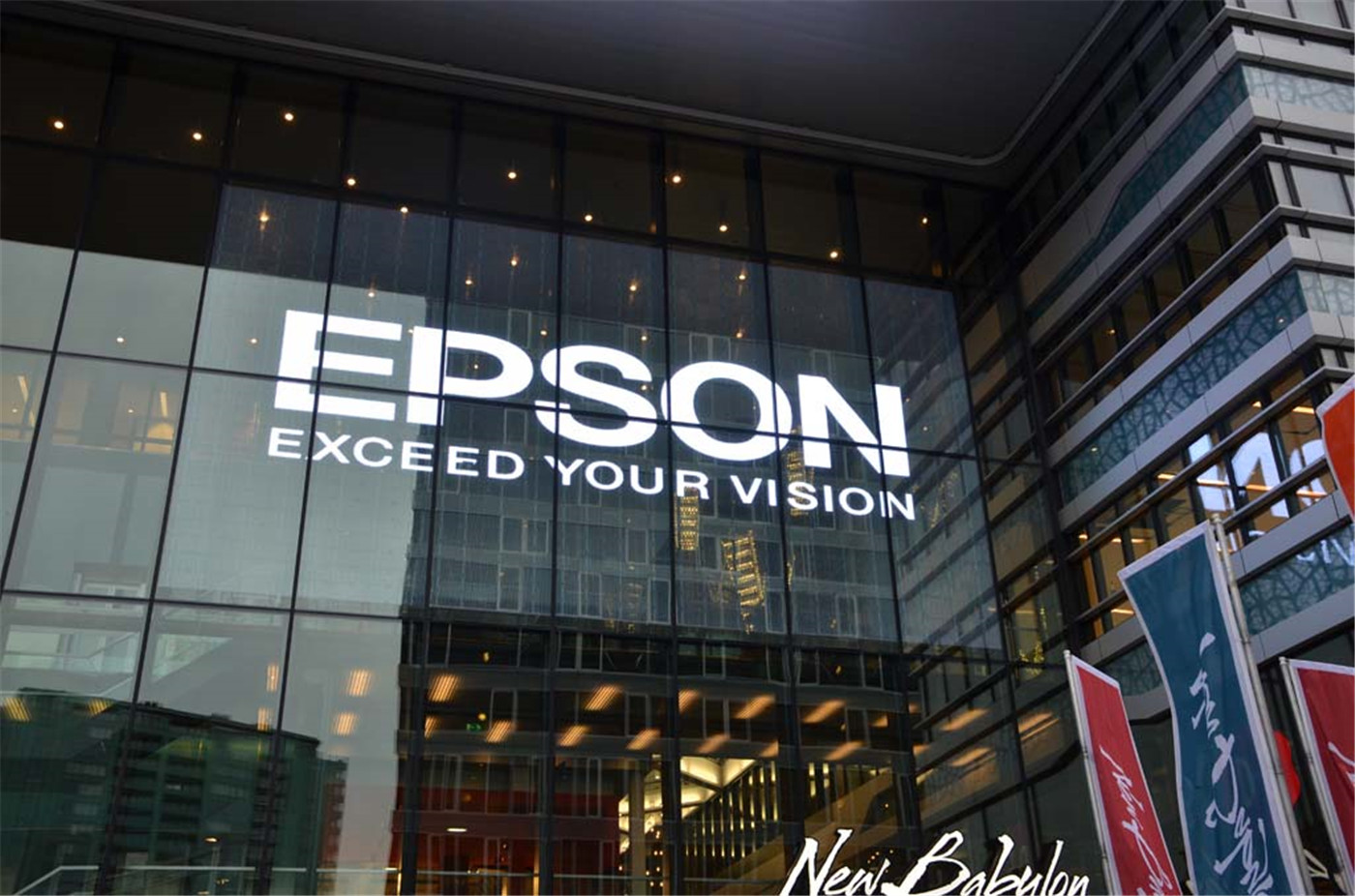

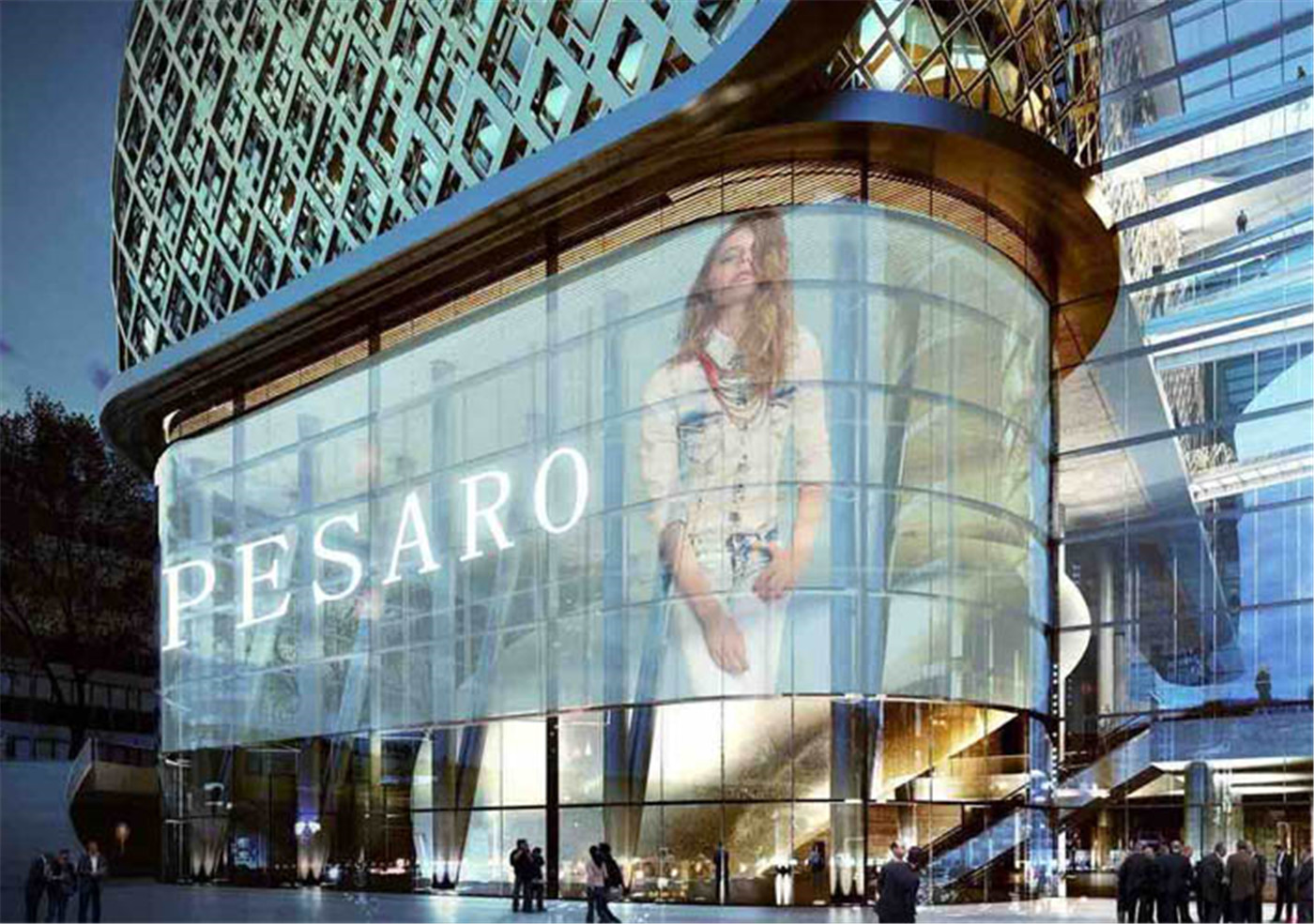

Equipped with a 500*1000*60mm aluminum LED panel, the Envision outdoor transparent LED display is made of light bars. It is mainly used in outdoor walls, glass curtain walls, building tops, and other fields. Unlike traditional outdoor LED video walls, Envision transparent outdoor LED display breaks through the restrictions on installation on buildings and walls, which brings more flexibility and options for outdoor LED video wall projects.
Advantages of The Outdoor Transparent LED Display
High protection grade -- IP68.
Extremely Light-weight and ultra slim for easy shipping, install and maintain.
Easy maintenance and update. Long lifespan. Replace LED strip instead of the whole LED module for the maintenance.
High transparency.Transparency can reach up to 65%-90% with the highest resolution, screen is almost invisible when viewed from 5 meter.
Self-heat Dissipation. With a unique design of our transparent LED display, our product will last longer and stay brighter. As heart can damage many components.
Energy Savings. Our transparent LED display uses safe and highly efficient systems, we guarantee you to save much more energy compared to regular non- transparent LED display.
High brightness. Though the energy consumption of LED is lower than projection and LCD screen,it’s still clearly visible with high brightness even directly under sunlight.
