The Digital LED Poster Display
Parameters
| Item | Indoor P1.5 | Indoor P1.8 | Indoor P2.0 | Indoor P2.5 | Indoor P3 |
| Pixel Pitch | 1.53mm | 1.86mm | 2.0mm | 2.5mm | 3mm |
| Module size | 320mmx160mm | ||||
| lamp size | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Module resolution | 208*104dots | 172*86dots | 160*80dots | 128*64dots | 106*53dots |
| Module weight | 0.25kg±0.05kg | ||||
| Cabinet size | Standard Size 640mm*1920mm*40mm | ||||
| Cabinet resolution | 1255*418dots | 1032*344dots | 960*320dots | 768*256dots | 640*213dots |
| Module quanity | |||||
| Pixel density | 427186dots/sqm | 289050dots/sqm | 250000dots/sqm | 160000dots/sqm | 111111dots/m2 |
| Material | Aluminum | ||||
| Cabinet Weight | 40kgs±1kg | ||||
| Brightness | 700-800cd/㎡ | 900-1000cd/m2 | |||
| Refresh rate | 1920-3840Hz | ||||
| Input Voltage | AC220V/50Hz or AC110V/60Hz | ||||
| Power Consumption(Max. / Ave.) | 660/220 W/m2 | ||||
| IP rating(Front/Rear) | Front IP34/Back IP51 | ||||
| Maintenance | Rear Service | ||||
| Operating Temperature | -40°C-+60°C | ||||
| Operating Humidity | 10-90% RH | ||||
| Operating Life | 100,000 Hours | ||||

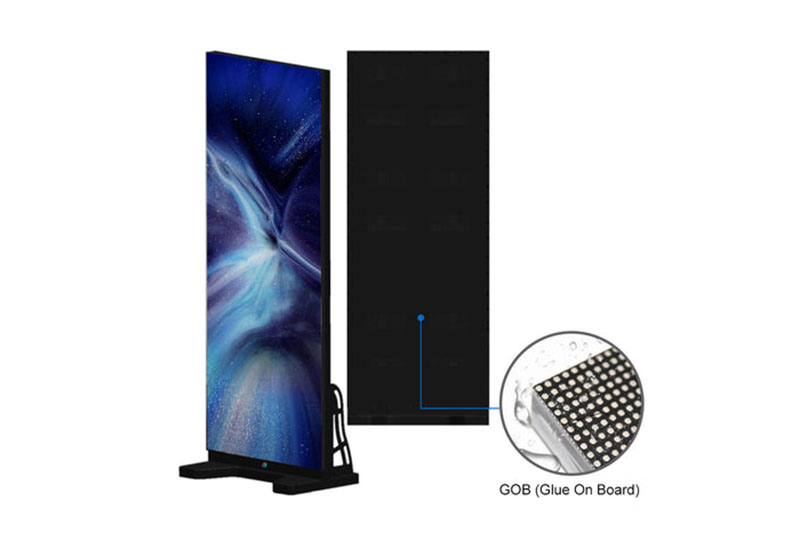

GOB Tech. protect the SMD LEDs
Glue on Board technology, the LED surface is covered by glue that can protect from dust, water (IP65 Waterproof), and attack. Solved the problem of drop and damage of LED when the LED poster in impact.
Light Weight & Ultra-thin Frame
Comparing similar product in the market. Envision’s smart LED poster has lightweight, take the model indoor P2.5 smart LED poster as an example. its weight is less than 35kg. With the wheels on the stand, even one person can move it easily. it’s easier and more cost-effective for transferring.
Not only lightweight but also the Envision’s LED Poster has a thin frame with a thickness of only 40mm (about 1.57 inches). The ultra-thin frame ensures that the gap between the smart LED posters is smaller after multiple units splicing. Only around 3mm, which is the smallest in the market.
Multi-screen Splicing

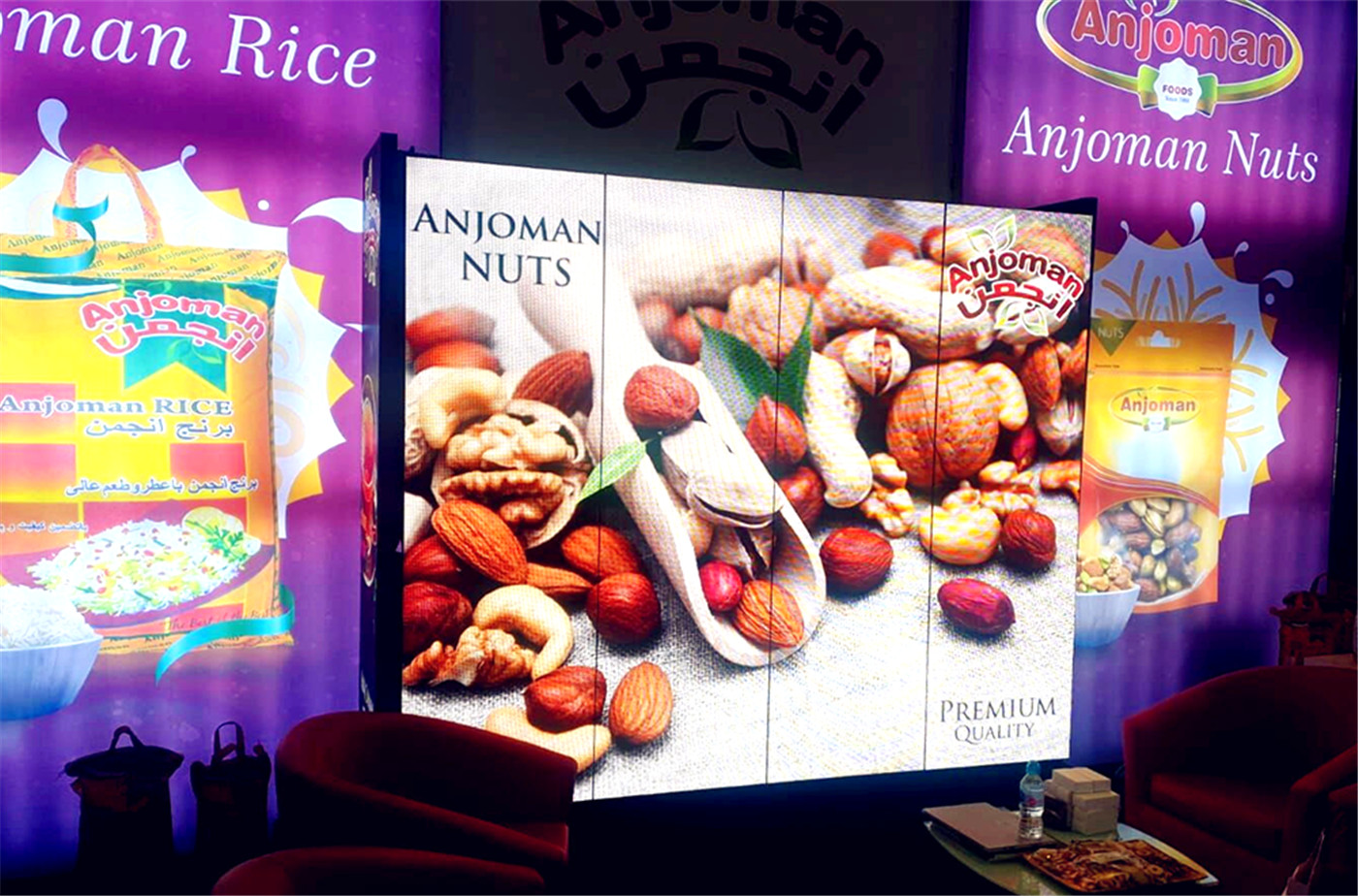

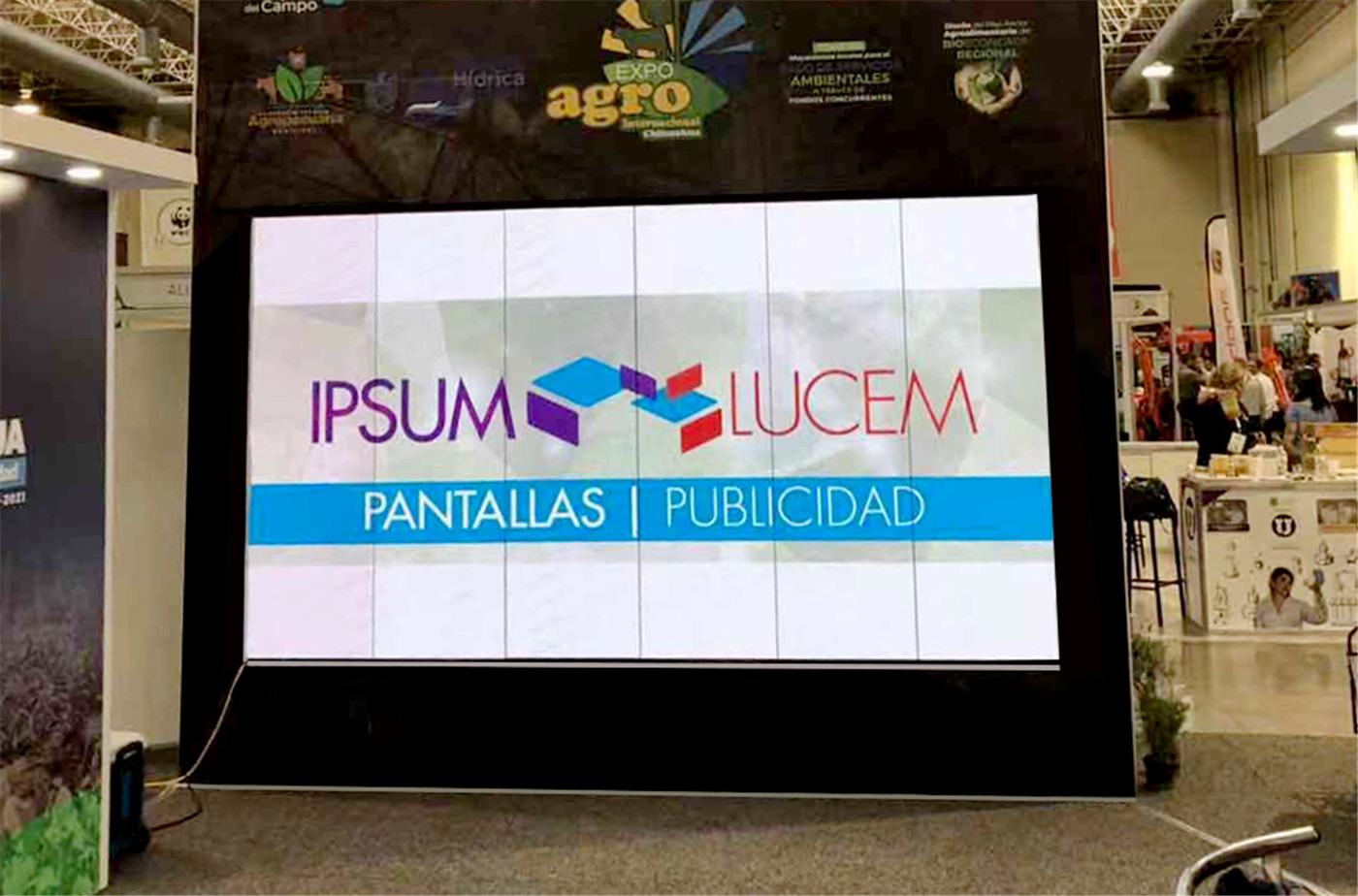

The LED poster can be spliced together to make a bigger screen which can be nearly seamless due to the thin frame of each LED poster, with no interruption to the images presented on the big screen.
If you want to get a screen with a golden ratio of 16:9, just splice 6 units of the digital LED poster together. Linking 10 units of P3 LED poster will help you achieve 1080p HD performance and for P2.5 model 8 units are needed. The screen by linking 10-16 units together is able to deliver HD, 4K, and UHD video performance.
Diversified Installation Methods

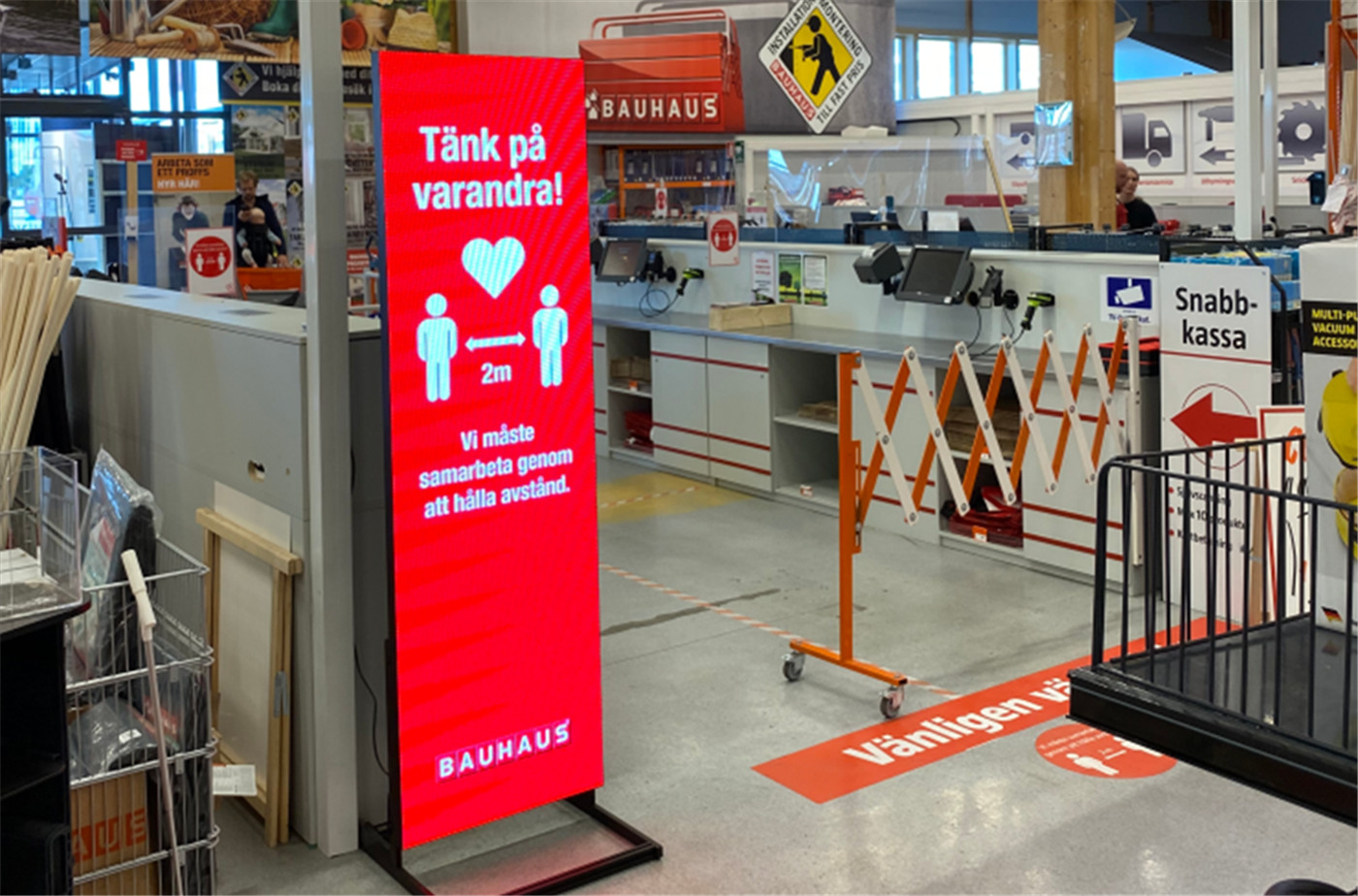

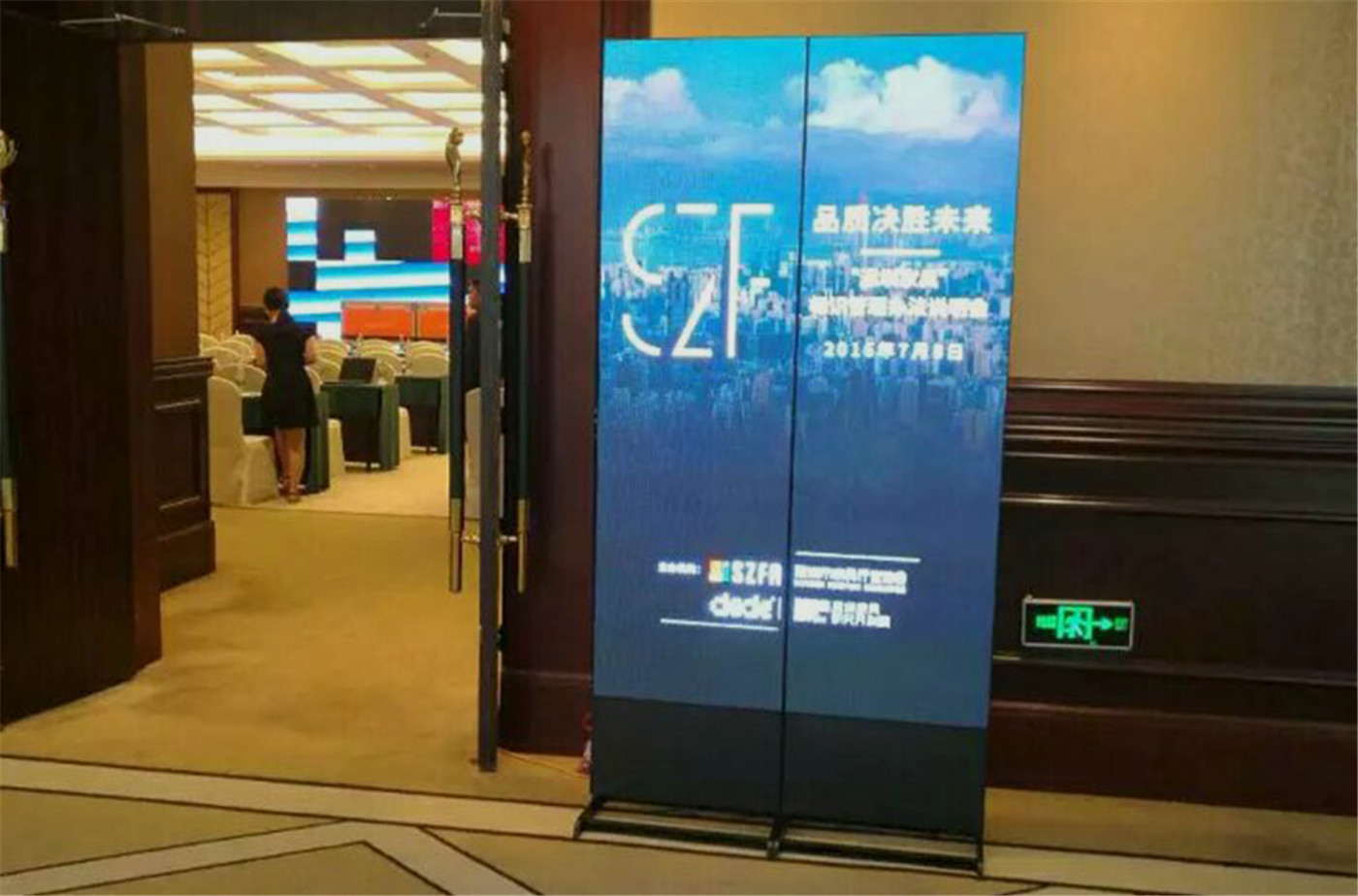

The LED poster display comes in different installation ways. It can be wall-mounted, ceiling-mounted, hanging or floor-standing. Or you can use it horizontally as a banner display, and you can splice together several horizontally placed LED digital posters to get a screen in a different ratio.

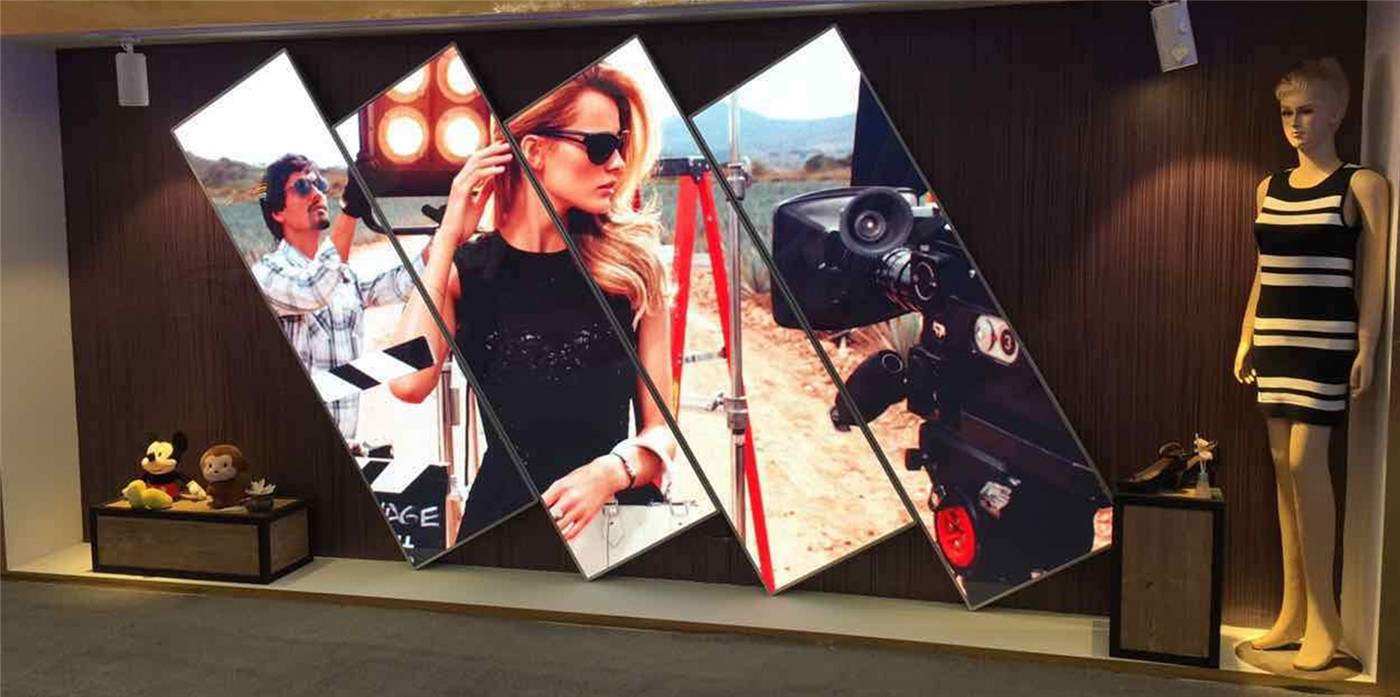

Another way for innovative installation starts with you tilting the Digital Posters in the angle you want and by slicing different numbers of units, you’ll get the LED display flavored by your genuine creativity, more captivating and attention-grabbing.
External Device Compatible to Achieve Intelligence
In order to achieve further energy saving, our LED poster can be connected to an external light sensor. And the brightness of the screen can be automatically adjusted according to the environment.
To achieve a better advertising effect, the digital LED poster is able to connect with the speaker. Not only this, the LED poster support interactive function(customized). Easier to make your advertising impressive and unforgettable.
Customization
To help you build a brand, we provide customized service to enable more of your creations can be achieved. We can help you to print your logo on the cabinet to make your device more recognized in the market. If you are not satisfied with our cabinet color or screen dimension. as long as you provide pantone color and size information, We will do our best to meet your project requirements.
Advantages of our LED Poster
Plug and Play
Ultra Slim & Light Weight
Fast delivery and stable quality. Envision mass-produces 200-300 LED posters per month to ensure ultra-fast delivery speed, and the same batch production ensures stable product quality
Smart and sturdy. Envision’s LED poster display series supports multiple and creative installation options. Its special production process and aluminum case make it more sturdy than ever.

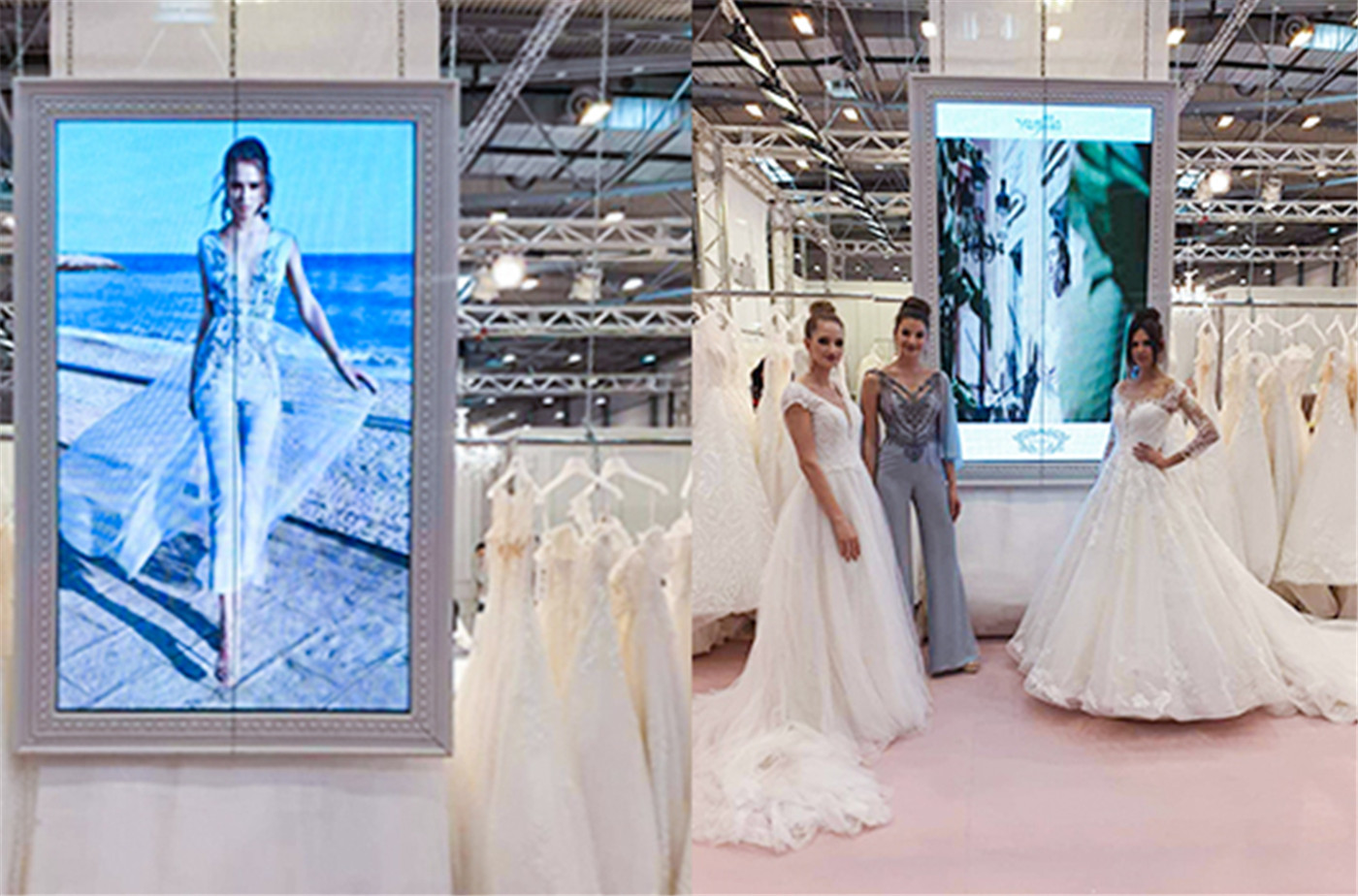

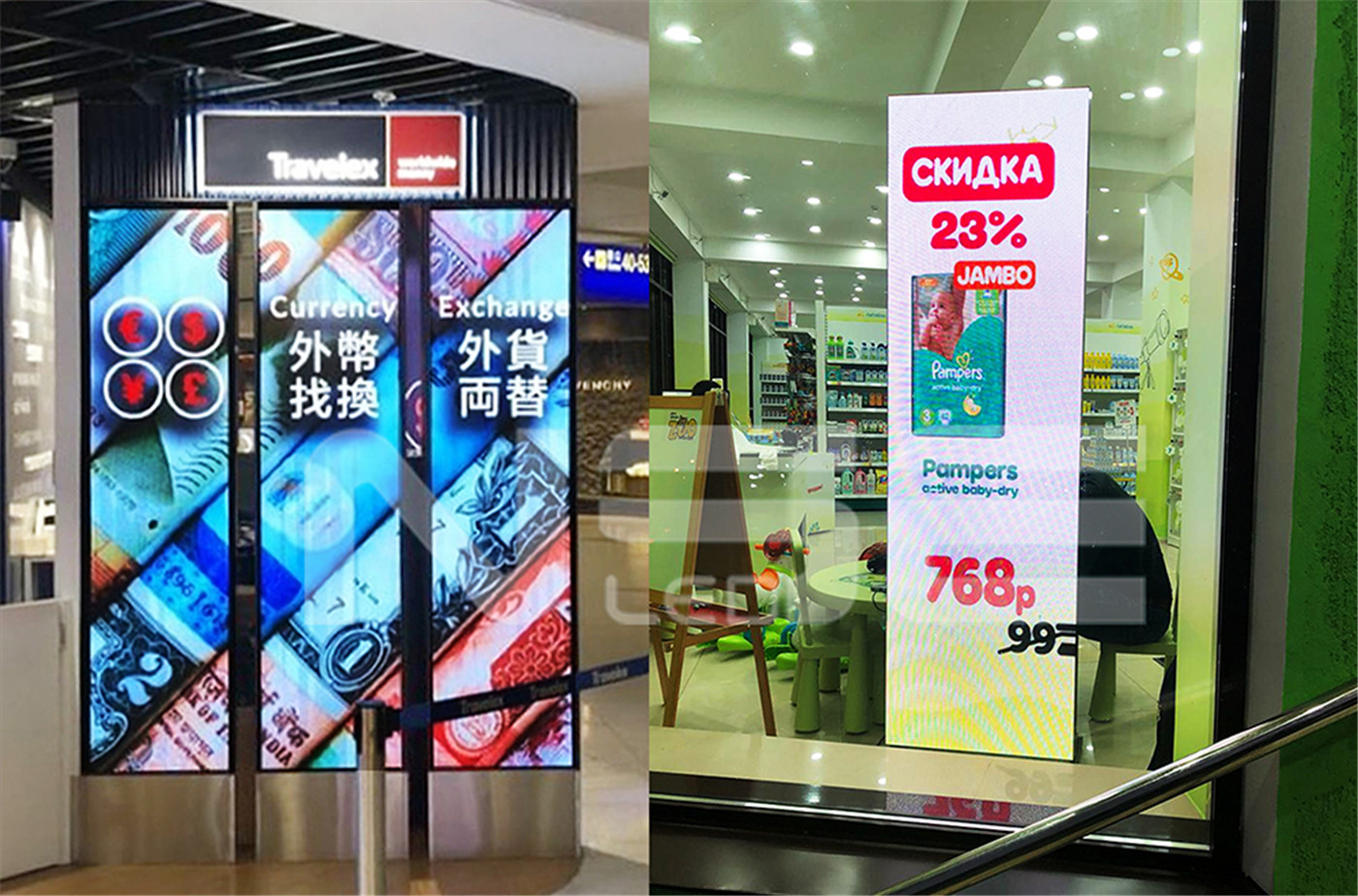

Impressive and versatile. Envison designs the smart LED poster to create a captivating visual impact and an ever-lasting impression. It is widely used in situations including tradeshows, advertising companies, retail businesses, shopping malls, etc.
Single & Multiple Units for LED Display. LED Poster is designed with quick connectors, and can be connected with other screens to form a large one seamlessly to play as one big screen,offering seamless display performance for better visual effect.
Multiple Control Solutions. LED Poster supports both synchronous & asynchronous control system, and the contents can be updated via iPad, Phone or Notebook. Real-time play, cross-platform information delivering, USB or WIFI supporting and IOS or Android multi-devices. Besides, it can support the built-in media player to store and play videos and images in all formats.
