The adhesive glass LED Display/LED Film Display

Short Description:

Envision Adhesive LED Film Display, apart from being flexible and transparent, it is also capable of displaying the content against strong bright sunlight. The content remains visible thanks to high-brightness LEDs. LED film screen is based on an unique and innovative design, light, modular, easy to install wherever you want to create spectacular installations also with curved shapes on glass. The beauty is that you can see-trough the screen and create amazing floating visual content.

Its greatest peculiarity is that it can be stuck to the glass just like a sticker. The vertical pixel pitch between the led strips is wider to ensure the transparency, while horizontal pixels is narrower to obtain a suitable definition to play high quality files even at a close distance. It is recommended to have a black (in other words blank) content background to get the most from the technology. Our transparent LED film displays are innovative and special to create unique visual effects. It is not for ordinary, common use. When applied in a creative manner and used in a proper way, it is spectacular like no other.


Product Detail

Parameter

Application

Product Tags

- Experience up to 95% transparency while still enjoying full display properties

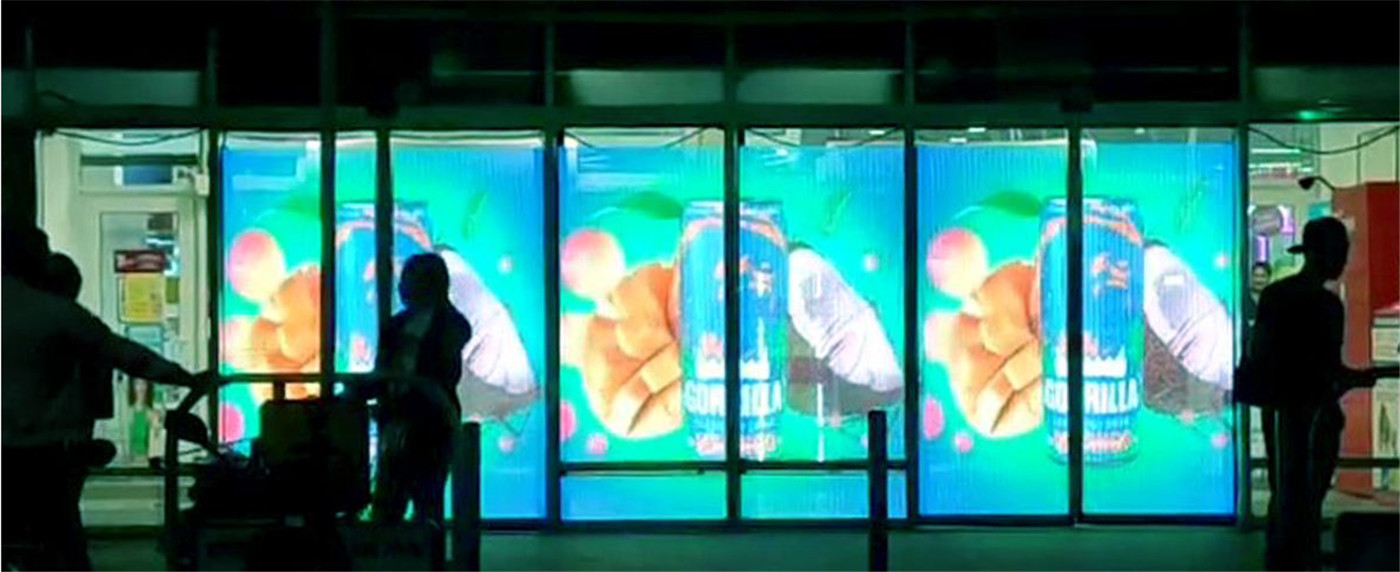

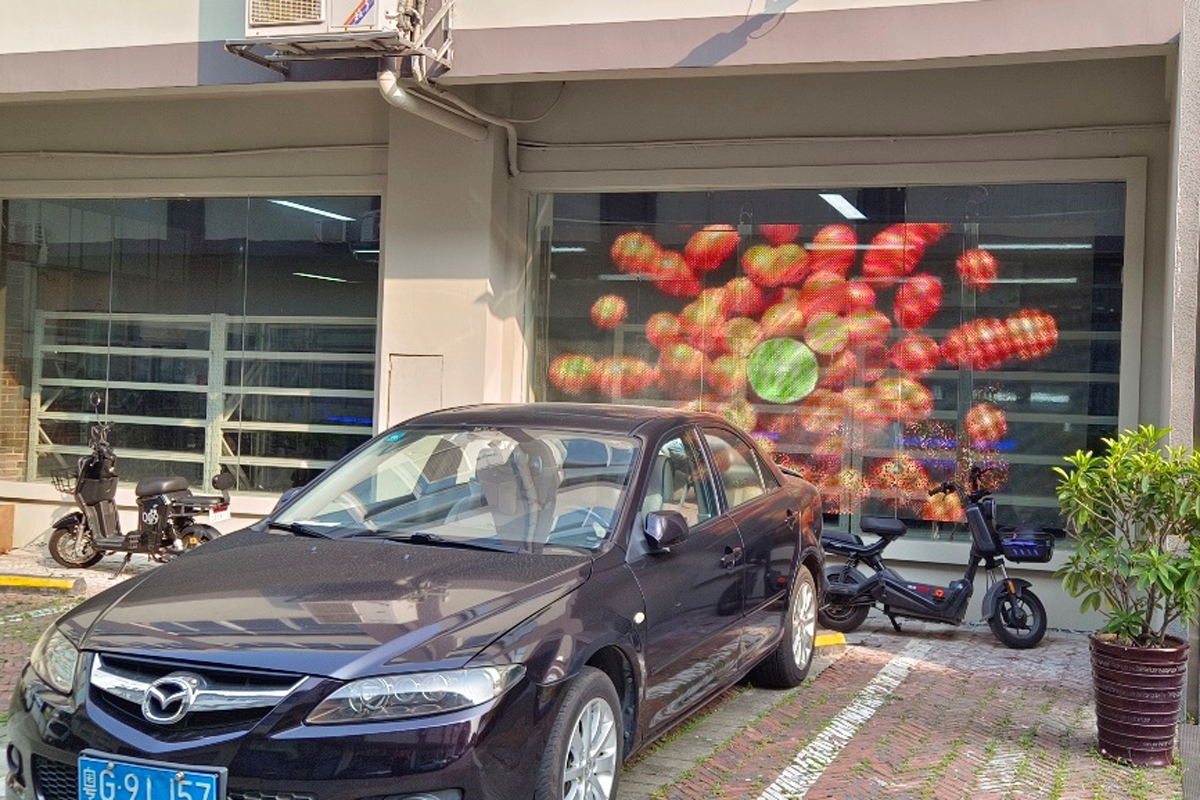

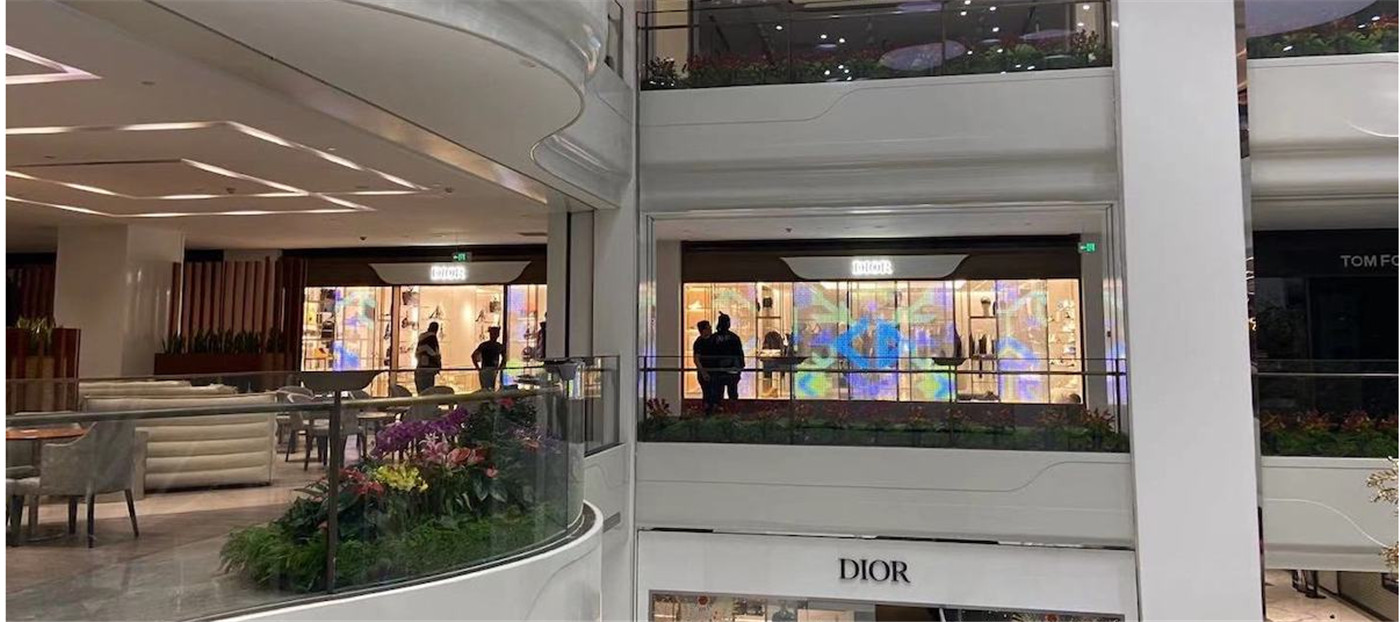

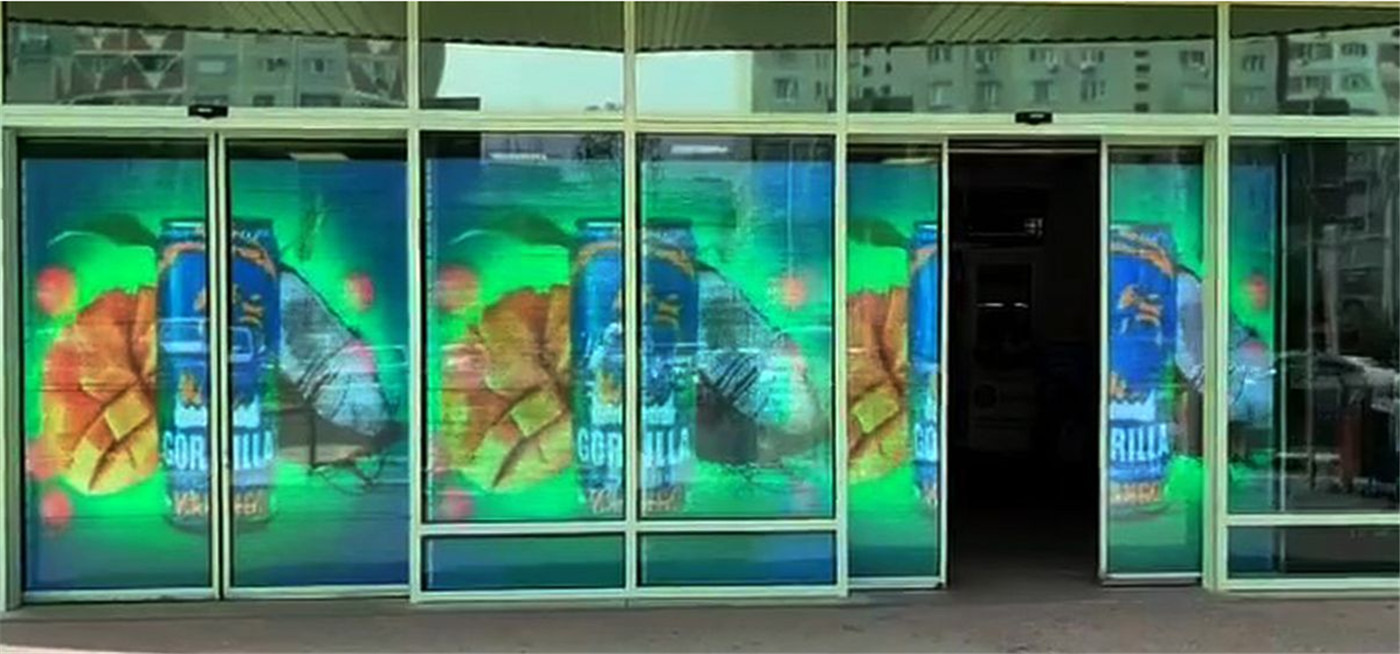

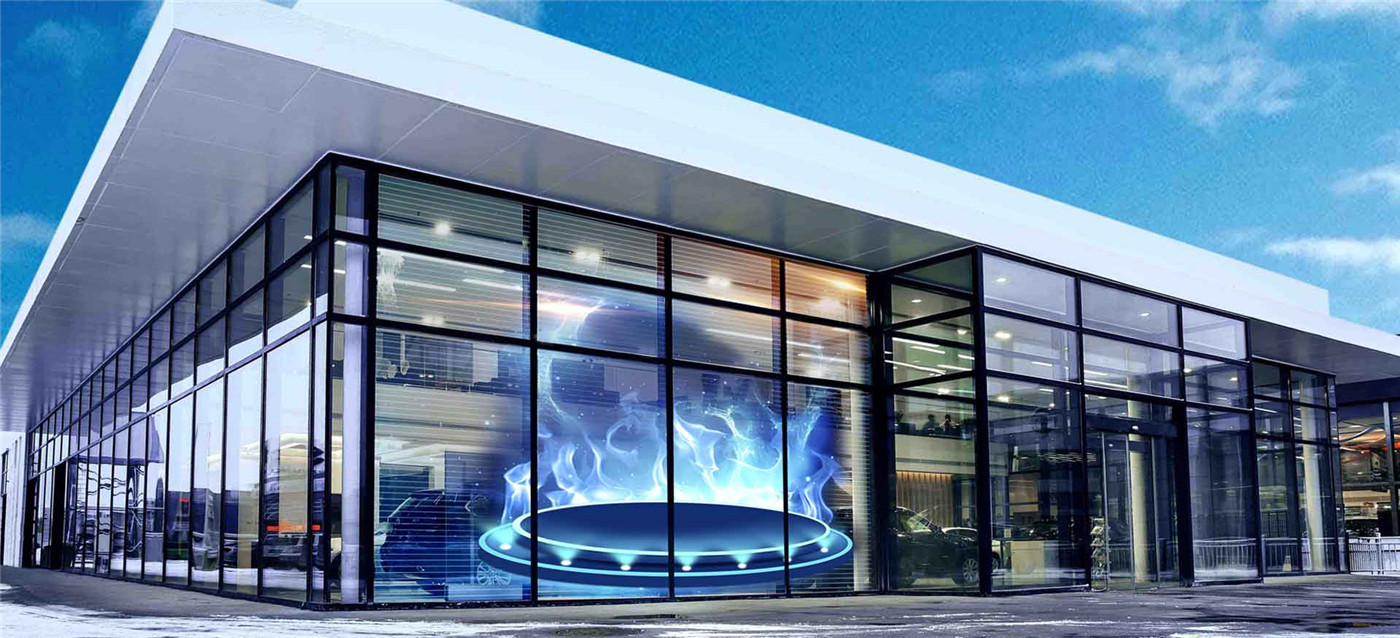

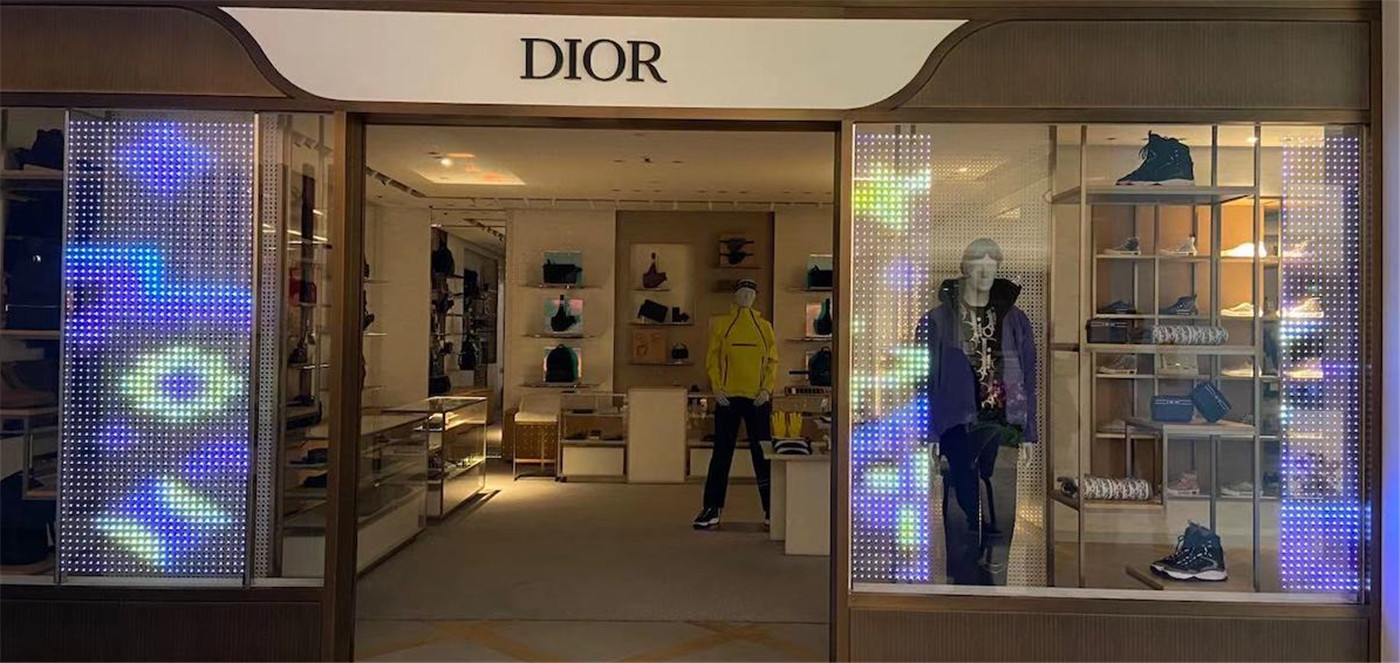

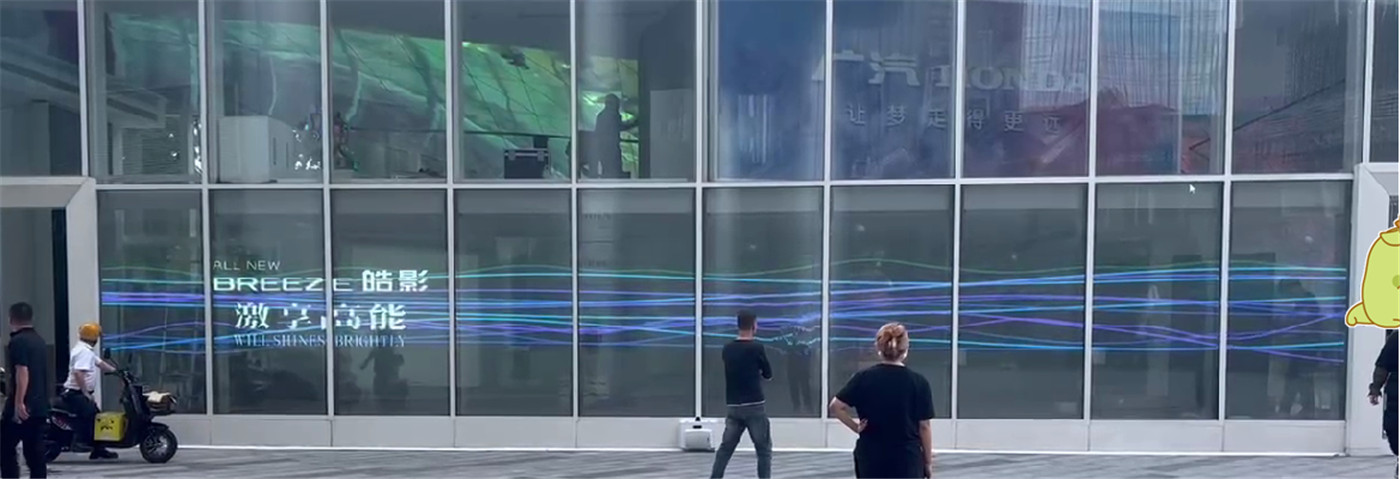

- Turn your ordinary glass facade or shop window into a captivating video show

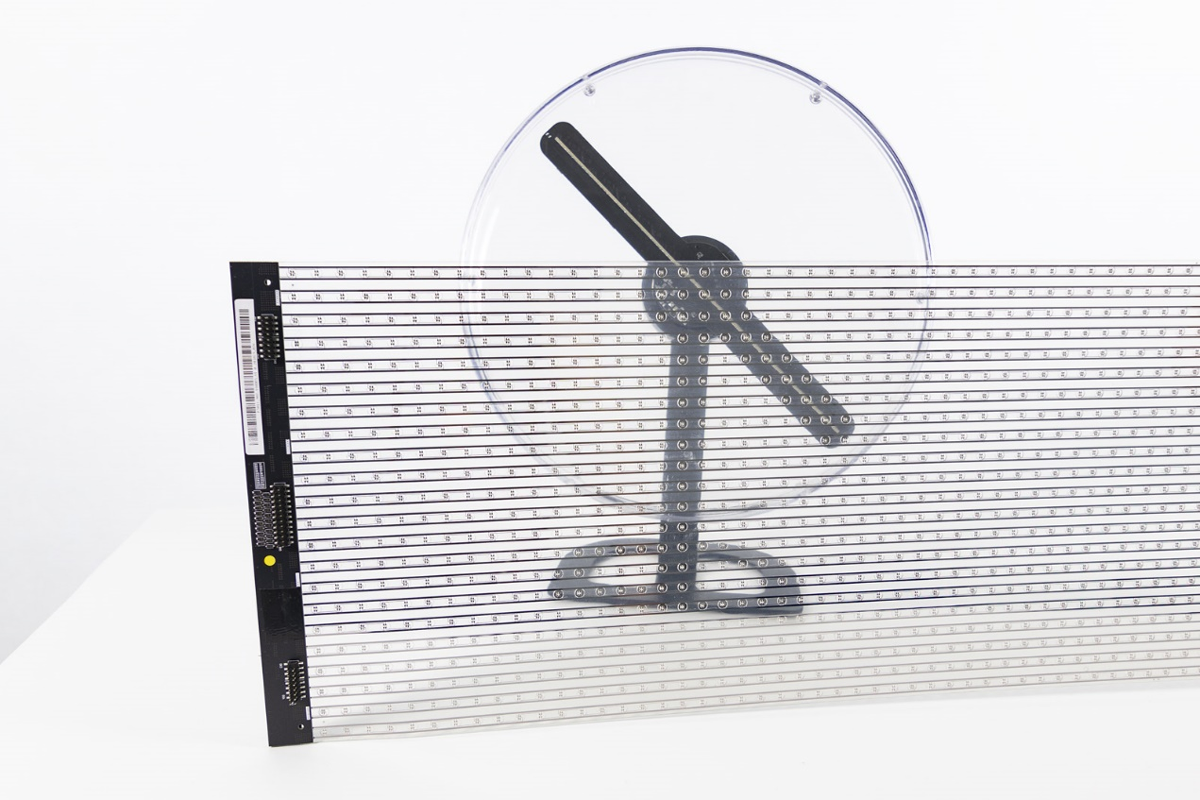

- Invisible PCB & Mesh Technology
- Enjoy exceptional transparency with advanced PCB & Mesh technology
- No visible wires between LED modules
- When the LED film is off, transparency is nearly perfect

CXNM-(1)

CXNM-(1)

- Slim & Soft for Creative Design
- Get creative with a slim and soft LED film that seamlessly integrates into any design
- Add a dynamic and captivating element to your space

- Easy Installation & Anti-UV
- Hassle-free installation process for a quick setup
- Anti-UV feature ensures long-lasting performance and protection against harmful rays

CXNM-(1)

index

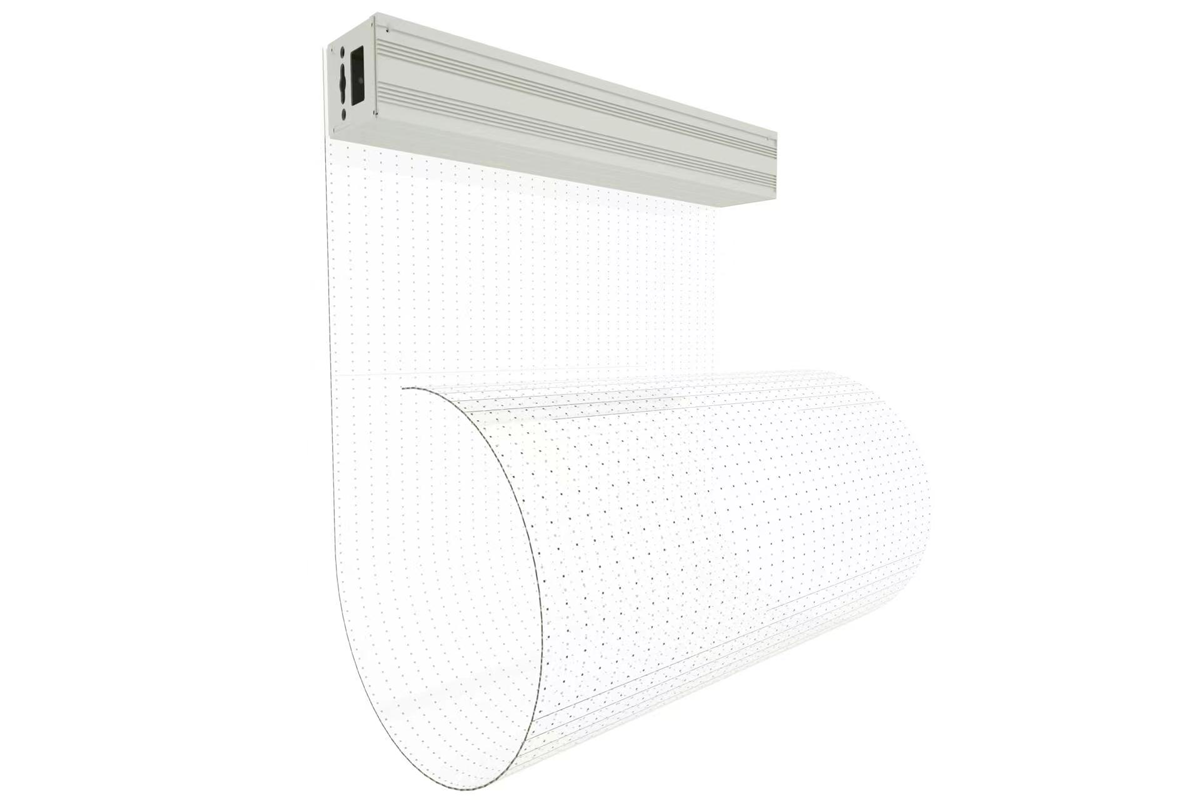

- Flexible during installation

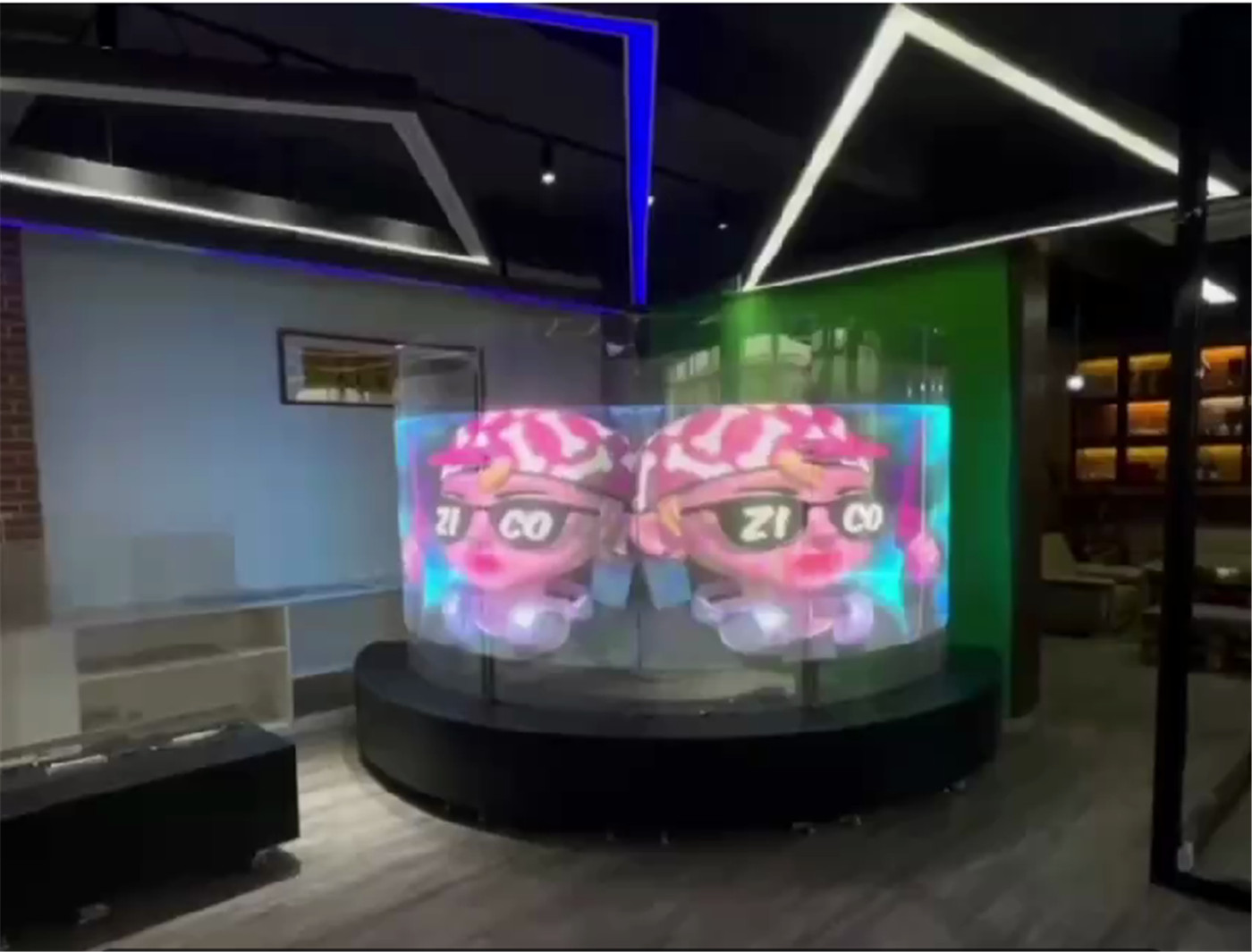

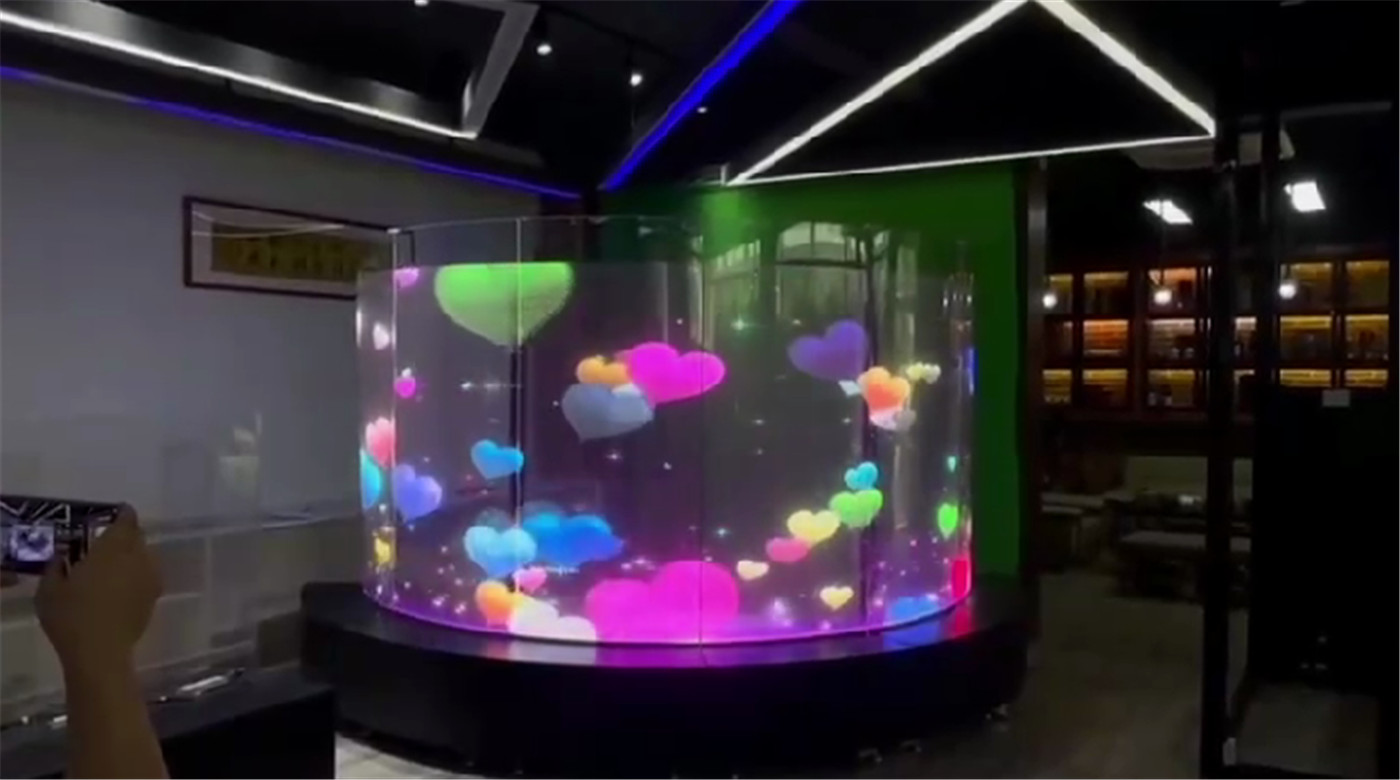

- Easily adapt the LED film to fit any curved or irregular surface

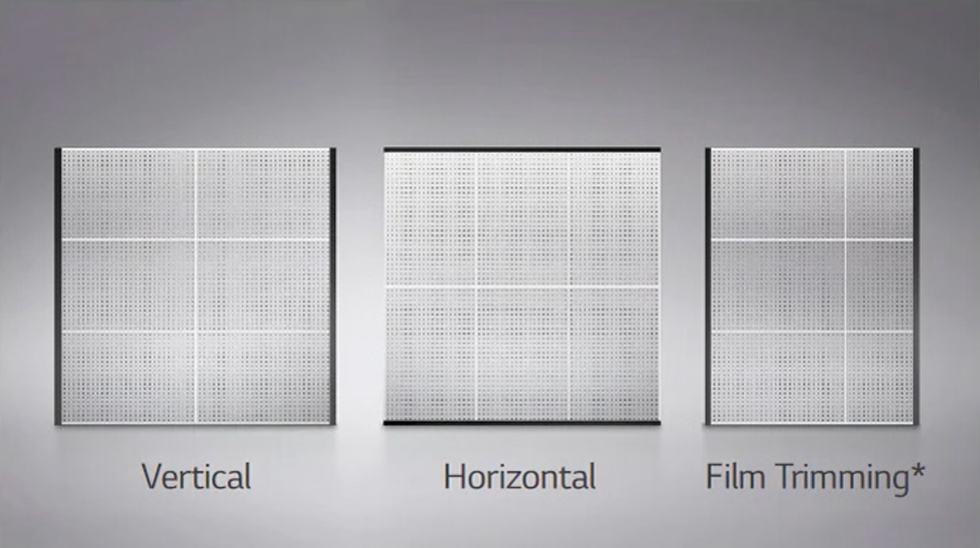

- The size and layout of the film can be customized to fit in to the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

CXNM-(5)
CXNM-(6)
The adhesive glass LED DisplayLED Film Display25 (1)
The adhesive glass LED DisplayLED Film Display25 (2)
The adhesive glass LED DisplayLED Film Display25 (3)
The adhesive glass LED DisplayLED Film Display25 (4)
The adhesive glass LED DisplayLED Film Display25 (5)
The adhesive glass LED DisplayLED Film Display25 (6)
The adhesive glass LED DisplayLED Film Display25 (7)
The adhesive glass LED DisplayLED Film Display25 (8)

Advantages of The adhesive glass LED Display

Metal heat dissipation, ultra-quiet fan less design.

Fan-less.

Flexible

Flexible.

Transparent LED tiles.

Transparent LED tiles.

Automatic brightness control.

Automatic brightness control.

Up to 5000 NIT brightness.

Up to 5000 NIT brightness.

Available in various pixel pitches.

Available in various pixel pitches.

Easy to stick on glass window from behind.

Easy to stick on glass window from behind.

Increased transparency rate based on the pixel pitch.

Increased transparency rate based on the pixel pitch.


  • Previous:
  • Next:

  • LED Flexible Transparent Film Data sheet
    MODEL P6 P6.25 P8 P10 P15 P20
    Module size (mm) 816*384 1000*400 1000*400 1000*400 990*390 1000*400
    LED light REE1515 REE1515 REE1515 REE1515 REE2022 REE2022
    Pixel composition R1G1B1 R1G1B1 R1G1B1 R1G1B1 R1G1B1 R1G1B1
    Pixel spacing (mm) 6*6 6.25*6.25 8*8 10*10 15*15 20*20
    Module pixel 136*64=8704 160*40=6400 125*50=6250 100*40=4000 66*26=1716 50*20=1000
    Pixel/m2 27777 25600 16500 10000 4356 2500
    Brightness 2000/4000 2000/4000 2000/4000 2000/4000 2000/4000 2000/4000
    Permeability 90% 90% 92% 94% 94% 95%
    Angle of view ° 160 ° 160 160 ° 160 ° 160 ° 160 °
    Input voltage AC110-240V50/ 60Hz AC110-240V50/ 60Hz AC110-240V50/ 60Hz AC110-240V50/ 60Hz AC110-240V50/ 60Hz AC110-240V50/ 60Hz
    Peak power 600w/㎡ 600w/㎡ 600w/㎡ 600w/㎡ 600w/㎡ 600w/㎡
    Average power 200w/㎡ 200w/㎡ 200w/㎡ 200w/㎡ 200w/㎡ 200w/㎡
    Work environment Temperature -20~55°C
    Humidity 10-90%
    Temperature -20~55°C
    Humidity 10-90%
    Temperature -20~55°C
    Humidity 10-90%
    Temperature -20~55°C
    Humidity 10-90%
    Temperature -20~55°C
    Humidity 10-90%
    Temperature -20~55°C
    Humidity 10-90%
    Weight 1.3kg 1.3kg 1.3kg 1.3kg 1.3kg 1.3kg
    Thickness 2.5mm 2.5mm 2.5mm 2.5mm 2.5mm 2.5mm
    Drive mode Static state Static state Static state Static state Static state Static state
    Control system Nova/Colorlight Nova/Colorlight Nova/Colorlight Nova/Colorlight Nova/Colorlight Nova/Colorlight
    Typical value of life 100000H 100000H 100000H 100000H 100000H 100000H
    Grayscale level 16bit 16bit 16bit 16bit 16bit 16bit
    Refresh rate 3840 Hz 3840 Hz 3840 Hz 3840 Hz 3840 Hz 3840 Hz
