Double-Sided LED Display Screen
Parameters
| Item | P1.25 | P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
| Pixel Pitch | 1.25mm | 1.56mm | 1.95mm | 2.5mm | 2.604mm | 2.976mm | 3.91mm |
| Module size | 250mmx250mm | 250mmx250mm | 250mmx250mm | 250mmx250mm | 250mmx250mm | 250mmx250mm | 250mmx250mm |
| lamp size | SMD1010 with GOB | SMD1212 with GOB | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Module resolution | 200*200dots | 160*160dots | 128*128dots | 100*100dots | 96*96dots | 84*84dots | 64*64dots |
| Module Quanity(WxH) | 4x1/3x1/2x1 | ||||||
| Cabinet size | 1000mmx250mmx54mm/750mmx250mmx54mm/500mmx250mmx54mm | ||||||
| Cabinet resolution | 800*200/600*200/400*200 | 640*160/480*160/320*160 | 512*128/384*128/256*128 | 400*100/300*100/200*100 | 384*96/288*96/192*96 | 336*84/252*84/168*84 | 256*64/192*64/168*84 |
| Maintenance | Front Service | ||||||
| Physical density(dot/sqm) | 64000dots/sqm | 409600dots/sqm | 262144dots/sqm | 160000dots/sqm | 147456dots/sqm | 112896dots/sqm | 65536dots/sqm |
| Cabinet Material | Aluminum | ||||||
| Brightness | 600nits | 600nits | 800nits | 800nits | 800nits | 800nits | 1000 |
| Refresh rate | ≥3840Hz | ||||||
| Viewing angle(V/H) | 160°/160° | ||||||
| Brightness/Color uniformity | ≥97% | ||||||
| Contrast | 10000:1 | ||||||
| Frame frequency | 50/60 | ||||||
| Drive mode | 1/50 scan | 1/40 scan | 1/32 scan | 1/25 scan | 1/32 scan | 1/28 scan | 1/16 scan |
| Input Voltage | AC220V/50Hz or AC110V/60Hz | ||||||
| Power Consumption(Max. / Ave.) | 650/100-200 W/m2 | ||||||
| IP rating(Front/Rear) | IP31 | ||||||
| Maintenance | Front Service | ||||||
| Operating Temperature | -40°C-+60°C | ||||||
| Operating Humidity | 10-90% RH | ||||||
| Operating Life | 100,000 Hours | ||||||
| Certificate | CCC/CE/RoHS/FCC/CB/TUV/IEC | ||||||

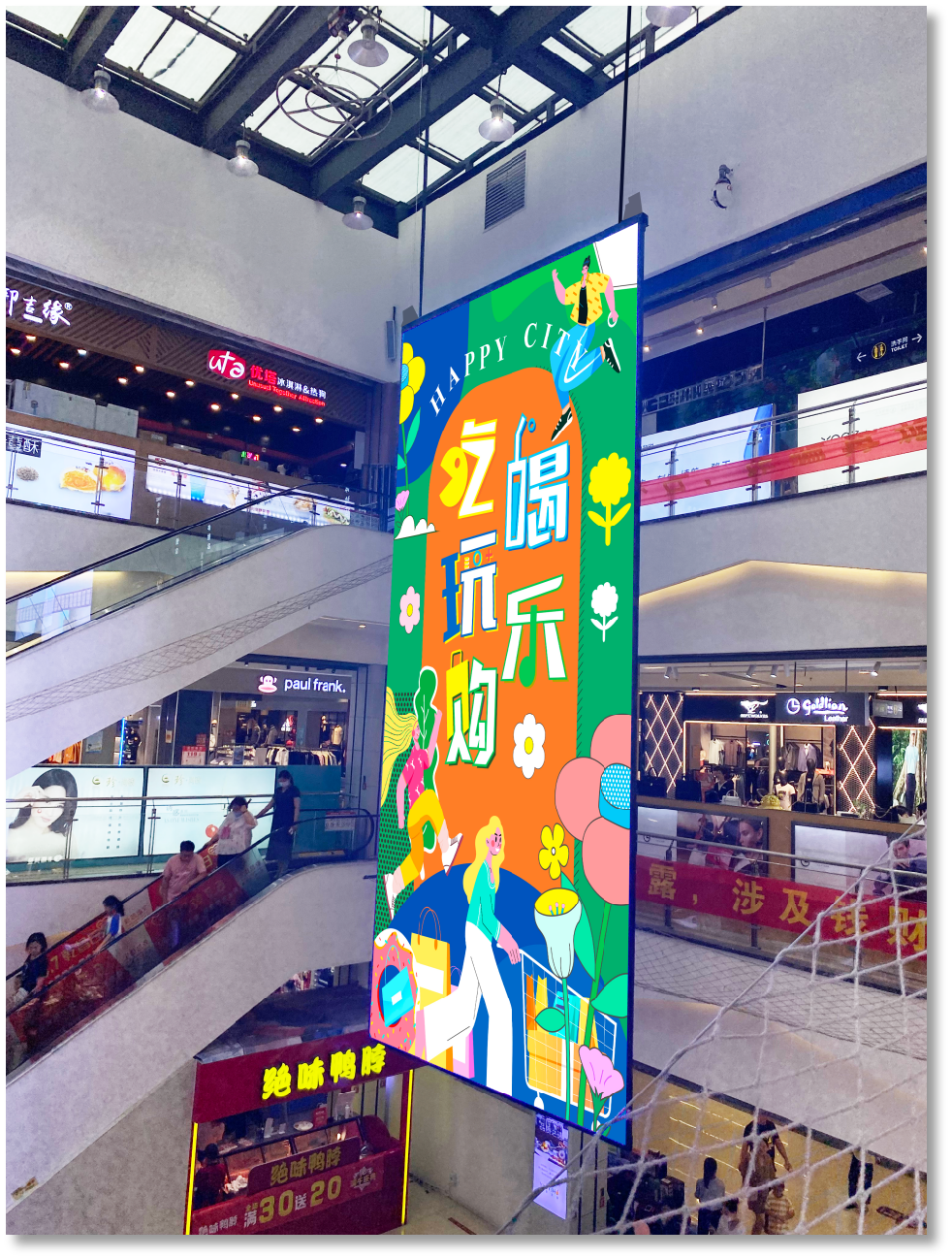

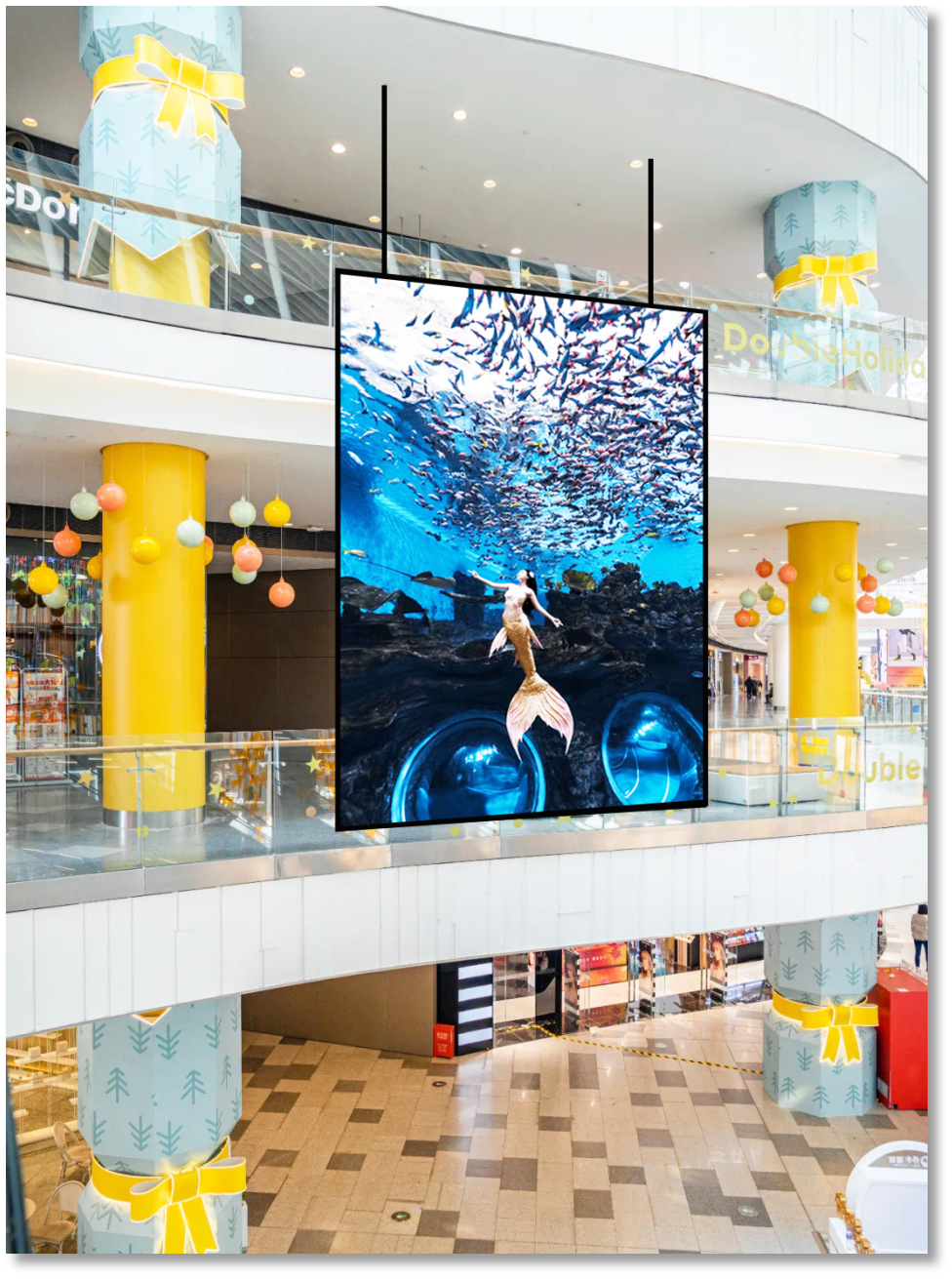

Double side display
Supports dual sided co display/co display
360° all-round display, each side is exciting
A-side
B-side
Full front maintenance
Full front maintenance, simple structure and easy installation
Hot swapping · wireless connection
● The hard connection design between the module and the box, completely eliminates the constraints of wires;
● 5V line design with extremely low failure rate;
● All aluminum box, fast heat dissipation;
High refresh rate
High refresh rate
Low refresh rate
High grey scale
Hig grey scale
Low grey scale
Installation mode
Our Advantage
Double-sided display
High brightness
Light weight
Front access
Quick installation
Wide viewing angle
High refresh rate
Hig grayscale
