1.What Is a COB Fine Pitch LED Display?
A COB Fine Pitch LED Display (Chip-on-Board) is the most advanced generation of small-pixel-pitch LED screen technology. Unlike traditional SMD LED packaging, COB technology directly integrates micro LED chips onto the PCB board and seals them with a protective resin layer. This creates a seamless, ultra-flat, anti-glare, and ultra-durable display surface.
With pixel pitch options including P0.7 / P0.9 / P1.2 / P1.5, COB LED displays are designed for true 4K and even 8K applications in compact indoor spaces, offering unmatched clarity, reliability, and viewing comfort.
Image Keywords:
“COB fine pitch LED display close-up”,
“COB LED micro structure”,
“P1.2 COB LED wall 4K ultra HD”.
2. Why COB Is the Future Trend of Fine Pitch LED Displays
With the rapid growth of 4K/8K visualization, AI monitoring, data centers, and immersive conference systems, traditional SMD fine pitch displays are gradually being replaced by COB technology. Compared to SMD, COB offers:
●Higher contrast and deeper black levels
●Better heat dissipation and longer lifespan
●Stronger impact resistance
●Lower failure rate and dead pixel risk
●Better consistency for long-term operation
COB is now the mainstream future trend for high-end fine pitch LED displays.

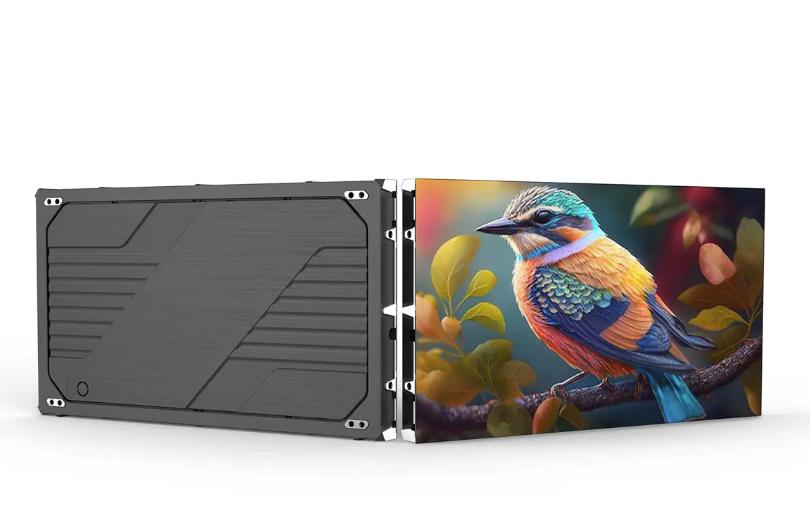

3. Core Product Features of EnvisionScreen COB Fine Pitch LED Display
3.1 Ultra-Fine Pixel Pitch for True 4K/8K Resolution
●Pixel Pitch: P0.7 / P0.9 / P1.2 / P1.5
●Designed for close viewing distances (0.5–1.5meters)
●Perfect for ultra-HD signal processing and display
3.2 Seamless Black Surface & Zero Reflection
●Ink-black resin coating
●No glare under strong lighting
●Excellent contrast and image depth
3.3 Ultra-High Protection & Durability
●Moisture-resistant
●Dust-proof
●Anti-static
●Anti-collision
●Ideal for high-traffic public environments
3.4 Low Heat & Silent Operation
●High thermal efficiency
●Fanless structure
●No noise for conference and broadcast environments
3.5 Full Front Maintenance Design
●Magnetic front-access modules
●Easy power & receiving card replacement
●Saves maintenance space
●Shortens downtime
3.6 Ultra-High Color Accuracy
●Wide color gamut
●Precise grayscale control
●Smooth low-brightness performance
4. COB Fine Pitch LED Technical Specifications
| Item | Nano0.7 COB | Nano0.9 COB | Nano1.2 COB | Nano1.5 COB |
| LED Type | Full-Flip-Chip-on-Board (COB) | |||
| Pixel Pitch | P0.78mm | P0.9375mm | P1.25mm | P1.5625mm |
| Module size | 150mm(W)x112.5mm(H) | 150mm(W)x112.5mm(H) | 150mm(W)x168.5mm(H) | 150mm(W)x168.5mm(H) |
| Module resolution | 192x144dots | 160x120dots | 120x135dots | 96*108dots |
| Cabinet size | 600x337.5x30mm | |||
| Cabinet resolution | 768*432dots | 640*360dots | 480*270 dots | 384*216dots |
| Module quanity | 4x3 | 4x3 | 4x2 | 4x2 |
| Pixel density | 1643524dots/sqm | 1137778dots/sqm | 640000dots/sqm | 409600dots/sqm |
| Material | Die-Casting Aluminum | |||
| Cabinet Weight | 5.1Kgs +/-0.5/PCS | |||
| Brightness | 500-3000cd/㎡ adjustable | |||
| Refresh rate | ≥3840Hz | |||
| Input Voltage | AC220V/50Hz or AC110V/60Hz | |||
| Max.Power Consumption | ≦150W/PCS | ≦120W/PCS | ≦100W/PCS | ≦95W/PCS |
| Average Power Consumption | 50-80W/PCS | 30-45/PCS | 25-40W/PCS | 20-35W/PCS |
| Maintenance | Front Service | |||
| Screen Failure rate | ≦0.003% | |||
| Module Data Storage | Compatible | |||
| Temperature Rise during the Operation | ≦5℃ | |||
| Electromagnetic Compatibility | Yes | |||
| Data and Power Double backup | Yes | |||
| Planeness | ≥98% | |||
| Operating Temperature | -40°C-+60°C | |||
| Operating Humidity | 10-90% RH | |||
| Operating Life | 100,000 Hours | |||
5.Main Application Scenarios of COB Fine Pitch LED Display

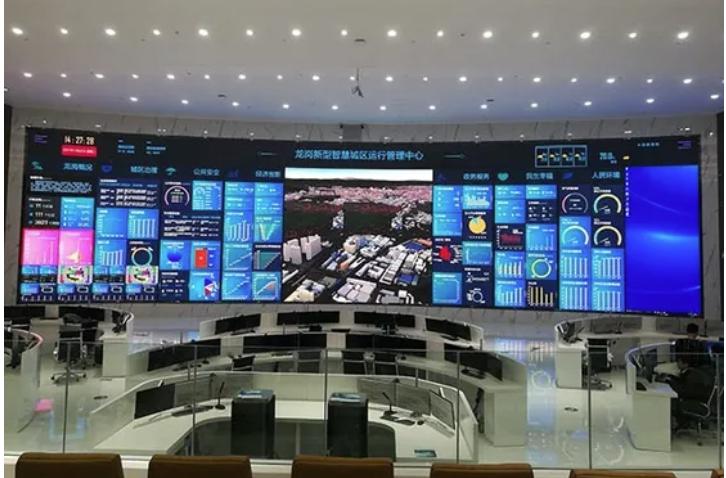

5.1 Command & Control Centers
Traffic control, emergency management, police dispatch, power grid monitoring, energy centers.

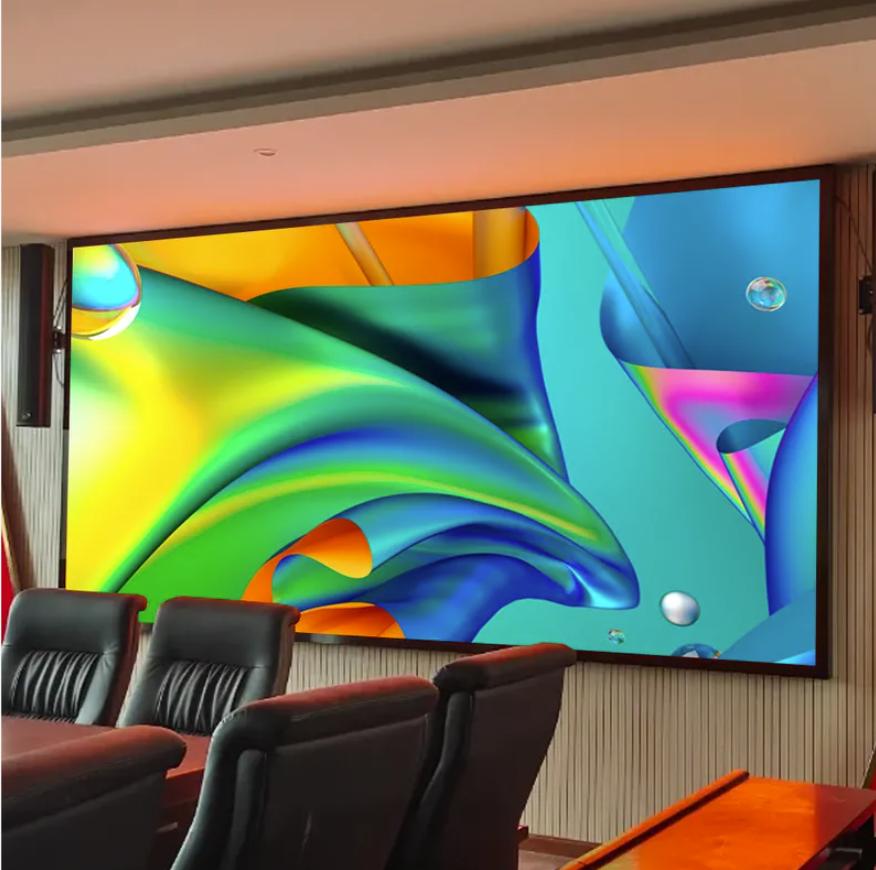

5.2 4K & 8K Conference Rooms
Government meeting halls, enterprise boardrooms, financial institutions, decision centers.

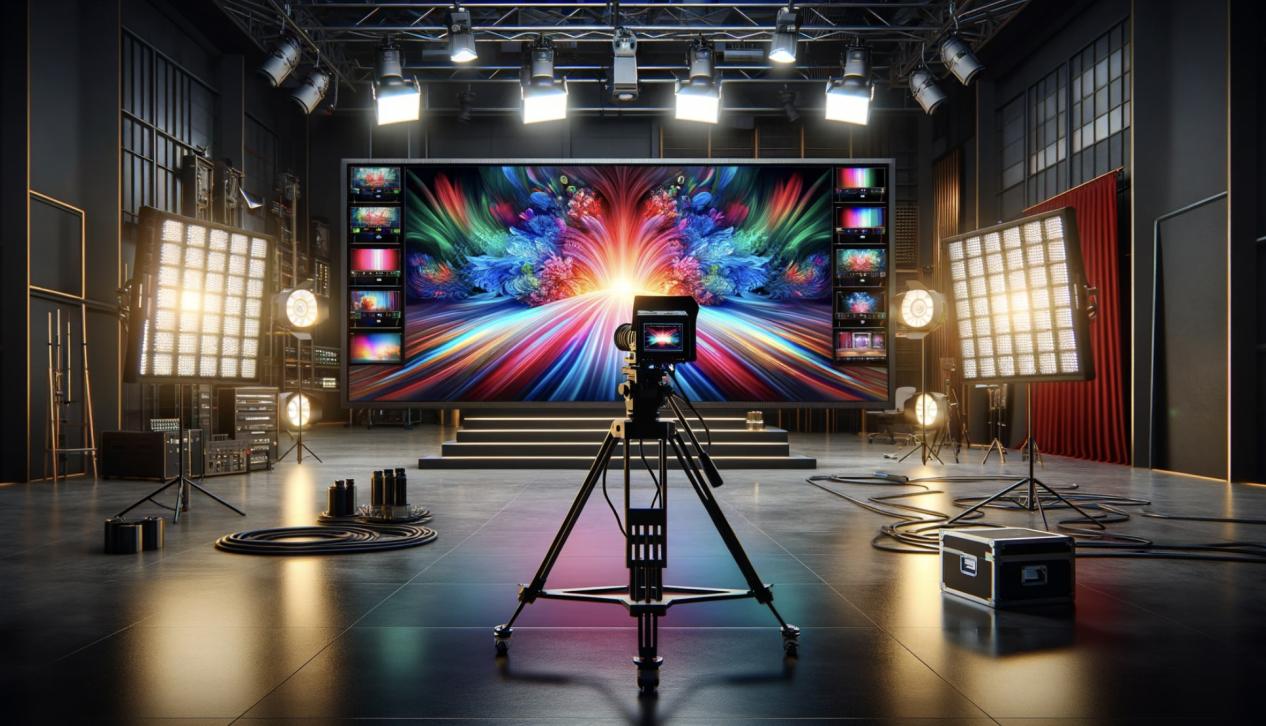

5.3 Broadcast Studios & Virtual Production
TV studios, XR virtual production, real-time broadcasting, news centers.

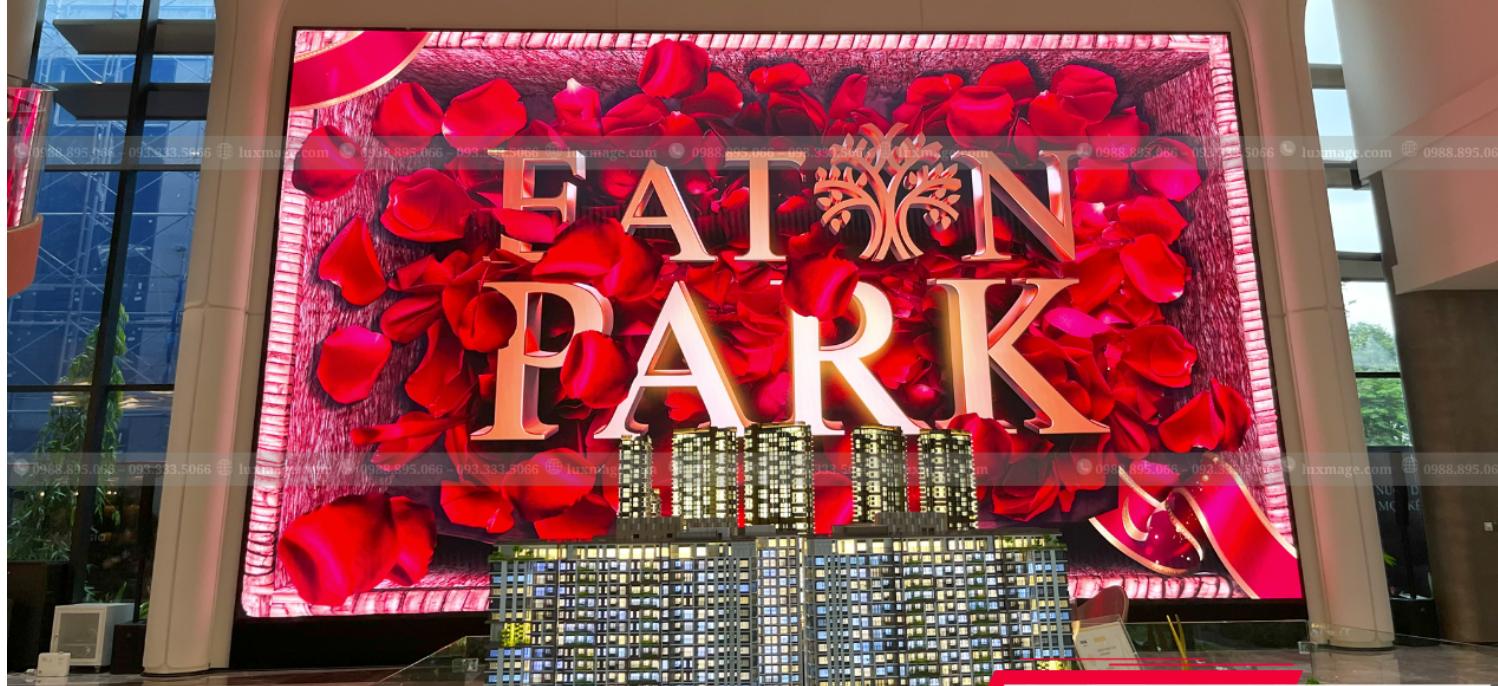

5.4 Corporate Showrooms & Brand Experience Centers
Automotive brands, tech brand exhibition halls, digital innovation centers.

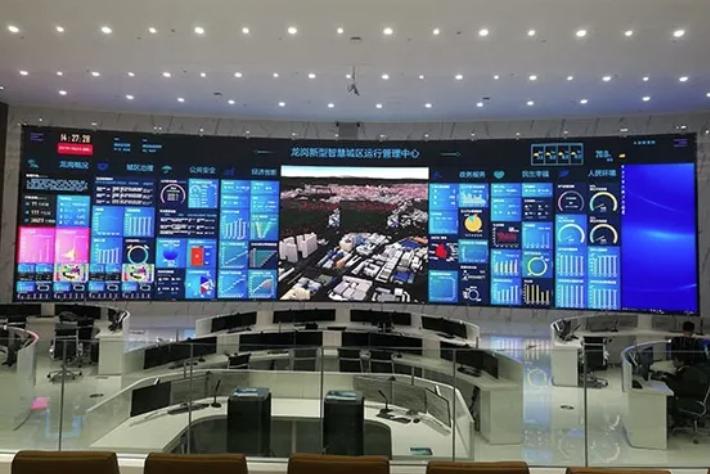

5.5 Data Centers & Smart Monitoring Rooms
Big data visualization, cloud platform monitoring.
5.6 Education & Research Institutions
University lecture halls, smart classrooms, research labs.
6. Customer Value & Business Advantages
●✅ Ultra-stable 24/7 continuous operation
●✅ No lamp bead falling risk
●✅ Strong shock & vibration resistance
●✅ Lower long-term maintenance cost
●✅ Higher energy efficiency
●✅ Best choice for long-term mission-critical projects
●✅ Professional-grade image quality for premium environments
7. How to Judge a High-Quality COB Fine Pitch LED Display
When selecting a COB LED display, buyers should focus on the following key factors:
7.1 Protection Level
●High-quality COB should have IP54 or above front protection
●Anti-static and moisture-resistant design is essential
7.2 Uniformity & Consistency
●No visible color blocks
●Uniform brightness across the entire screen
●No dark corners
7.3 Grayscale & Low-Brightness Performance
●Should maintain smooth image performance at 1–10% brightness
●No flicker, no color distortion
7.4 Heat Dissipation
●Stable temperature under long-term operation
●No overheating at high brightness
7.5 LED Chip & Driving IC Quality
●Premium brand chips
●High-performance driving IC
●Ensures long lifespan and signal stability
7.6 After-Sales Support & Warranty
●Stable technical support
●Long-term spare parts supply
●Global service capability
8. Buyer’s Checklist Before Purchasing COB LED Display
●✔ What pixel pitch is required? (P0.9 / P1.2 / P1.5)
●✔ Viewing distance and installation area size
●✔ Available maintenance space (front access required?)
●✔ Signal source (HDMI, SDI, 4K input?)
●✔ Operating hours (8h/day or 24/7?)
●✔ Budget vs performance balance
11. Frequently Asked Questions (Q&A)

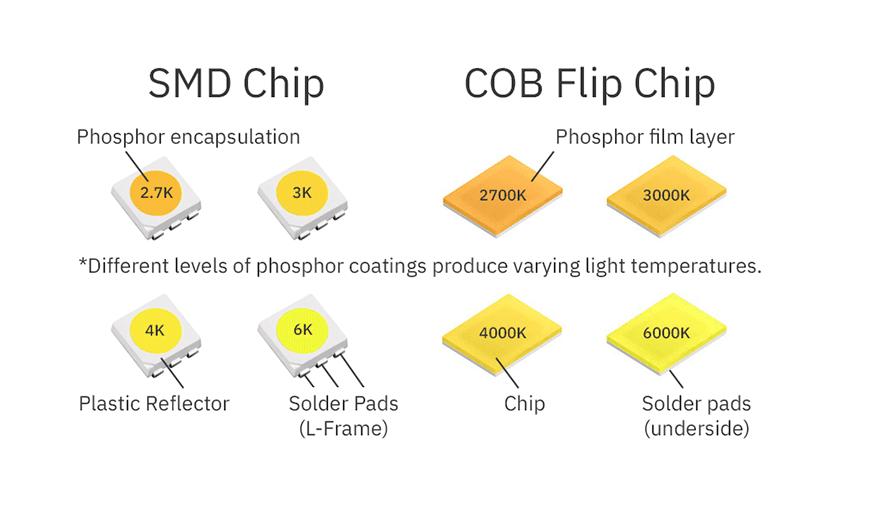

Q1: What is the main difference between COB and SMD LED?
COB directly encapsulates LED chips on the PCB, while SMD mounts LED lamps on the surface. COB offers better protection, higher contrast, lower failure rate, and longer lifespan.
Q2: Is COB LED suitable for all indoor projects?
COB is best suited for high-end projects that require ultra-HD resolution, high reliability, and close viewing. For budget projects, traditional SMD may still be more cost-effective.
Q3: What is the best pixel pitch for a conference room?
Most conference rooms use P1.2 or P1.5, balancing clarity, cost, and installation distance.
Q4: Can COB LED display run 24/7?
Yes. COB is designed for continuous 24/7 operation, making it ideal for monitoring centers and data centers.
Q5: Does COB LED support 4K input signals?
Yes. COB LED supports HDMI, DP, SDI, and 4K multi-signal input systems.
Q6: What is the lifespan of COB LED displays?
The average lifespan exceeds 100,000 hours, far longer than most commercial display systems.
12. Why Choose EnvisionScreen COB Fine Pitch LED Display
●Professional COB production line
●Strict aging and calibration testing
●Premium LED chips & ICs
●Global installation experience
●Long-term spare parts supply
●Stable after-sales service system

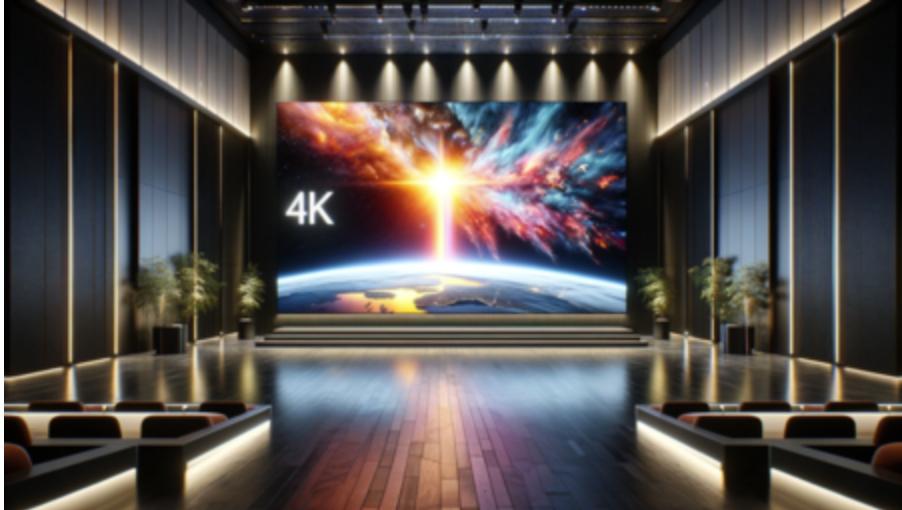

13.Conclusion
The COB Fine Pitch LED Display is now the ultimate choice for high-end indoor visualization applications, combining true 4K/8K resolution, ultra-high protection, seamless visual performance, and long-term operational stability. Whether for command centers, corporate conferences, broadcast studios, or luxury brand showrooms, COB LED is the most future-proof display investment.
